SGMOP07C.pdf
No.10844
? Rail-to-Rail Output
? Low Bias Current: ±1nA (TYP)
? High Open-Loop Gain: 120dB at VS = ±15V
? High PSRR: 146dB
? High Gain-Bandwidth Product: 3MHz
? Settling Time to 0.1% with 1V Step: 0.5μs
? Overload Recovery Time: 10μs
? Low Noise: 8.5nV/Hz at 1kHz
? Supply Voltage Range: 3.6V to 36V or ±1.8V to ±18V
? Input Common Mode Voltage Range:
(-VS) + 1.5V to (+VS) - 2V
? Low Quiescent Current: 0.9mA (TYP)
? -40℃ to +125℃ Operating Temperature Range

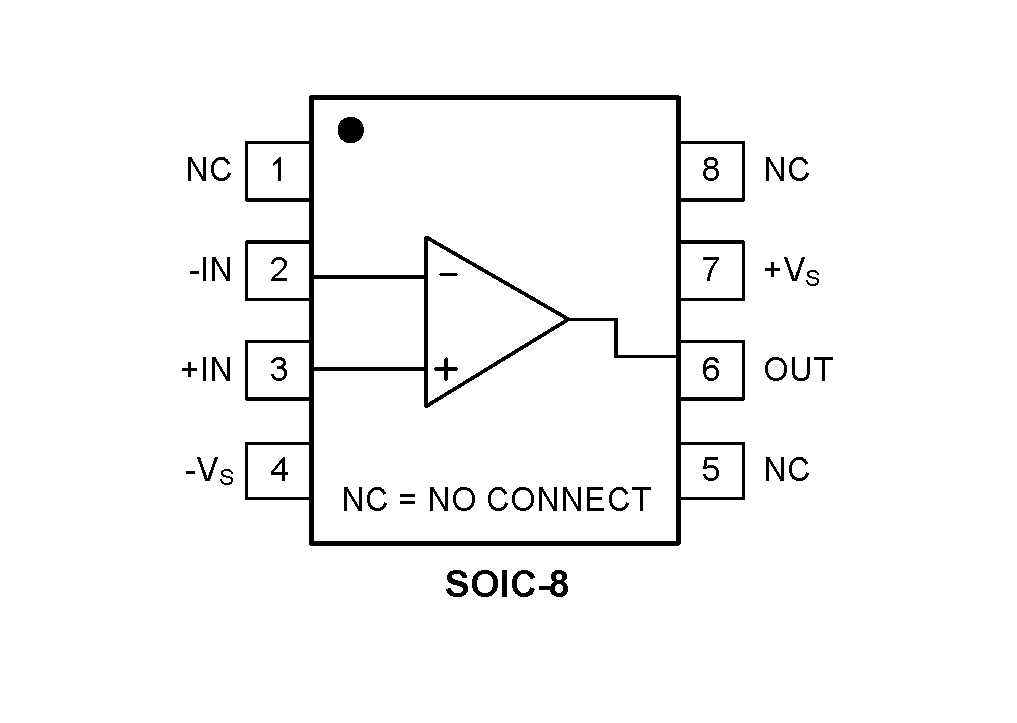

? Available in Green SOIC-8 Package
The SGMOP07C is a low noise, low offset voltage and high voltage operational amplifier, which can be designed into a wide range of applications. The SGMOP07C has a high gain-bandwidth product of 3MHz, a slew rate of 4V/μs, and a quiescent current of 0.9mA at wide power supply range.
The SGMOP07C is designed to provide optimal performance in low noise systems. It provides rail-to-rail output swing into heavy loads.
The single SGMOP07C is available in Green SOIC-8 package. It is specified over the extended -40℃ to +125℃ temperature range.
