1.0W Surface Mount Zener Diode
SMAZ18-13-F
SMAZ18-13-F.pdf
SMAZ18-13-F.pdf
No.10619
FEATURES
? 1.0W Power Dissipation
? Ideally Suited for Automated Assembly
? 5.1V - 39V Nominal Zener Voltage Range
? Standard VZ Tolerance is ± 5%
DESCRIPTION
? 1.0W Surface Mount Zener Diode

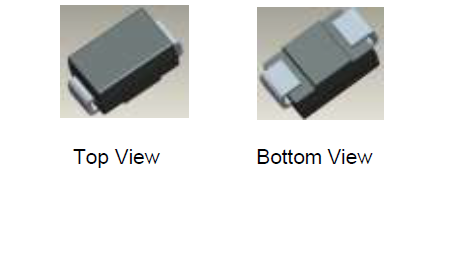

? Case: SMA
APPLICATION CIRCUIT

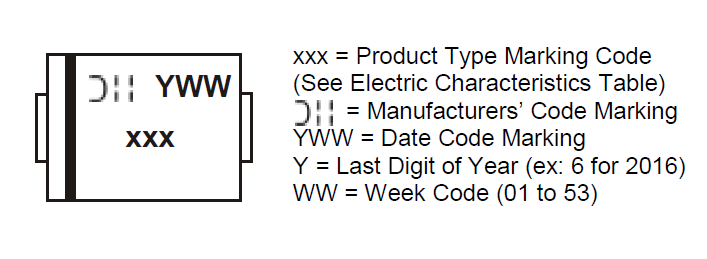

PIN CONFIGUTION
