1500W, 5V - 170V Surface Mount Transient Voltage Suppressor
SMCJ33CAHV6G
SMCJ33CAHV6G.pdf
SMCJ33CAHV6G.pdf
No.10620
FEATURES
● AEC-Q101 qualified
● Ideal for automated placement
● Glass passivated junction
● Excellent clamping capability
● Meets ISO 7637-2 (Pulse 1/2a/2b/3a/3b)
● Fast response time: Typically less than
1.0ps from 0 V to BV min
● Typical IR less than 1μA above 10V
DESCRIPTION
● 1500W, 5V - 170V Surface Mount Transient Voltage Suppressor

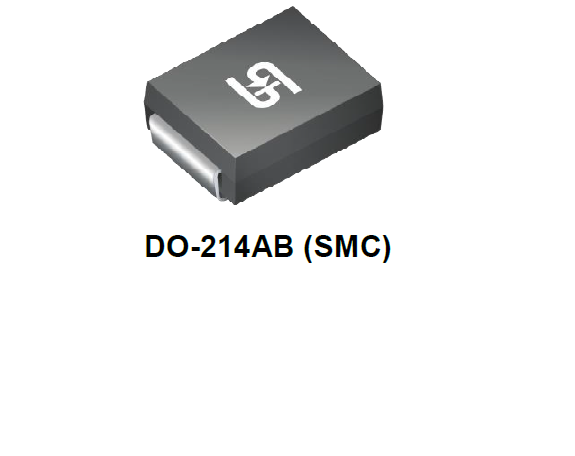

● Case: DO-214AB (SMC)
APPLICATION CIRCUIT

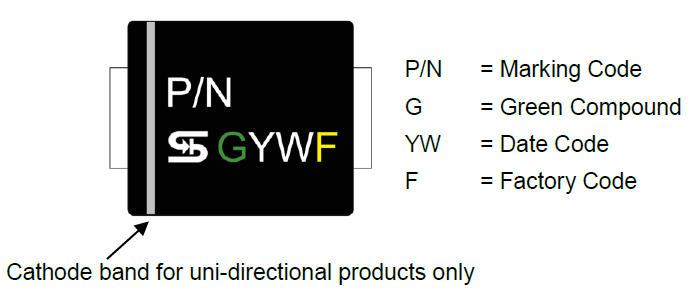

PIN CONFIGUTION
