3.3V, 16-Bit Buffers/Line Drivers with 3-State Outputs,74LVTN16245-Replace-74LVTN16245BDGG118.
74LVTN16245
74LVTN16245.pdf
74LVTN16245.pdfFEATURES
? Wide Operating Voltage Range: 2.7V to 3.6V
? Input and Output Interface Capability to 5V
System Environment
? +64mA/-32mA Output Current
? 3-State Outputs Drive Bus Lines Directly
? Power-up and IOFF 3-State
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green TSSOP-48 Package

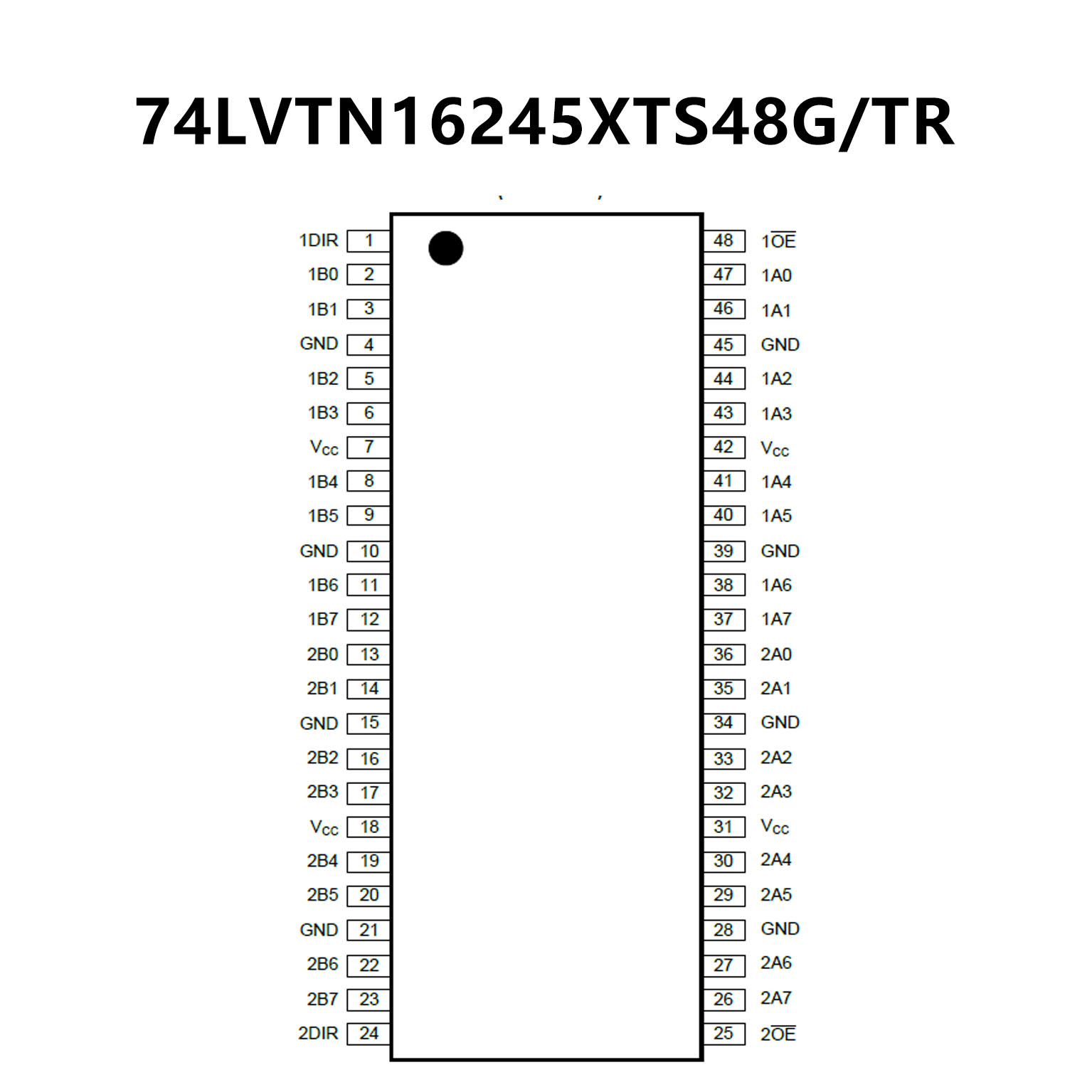

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? 16-bit bus interface
? 3-state buffers
? Output capability: +64 mA and -32 mA
? TTL input and output switching levels
? Input and output interface capability to systems at 5 V supply
? Power-up 3-state
? Live insertion and extraction permitted
? No bus current loading when output is tied to 5 V bus
? Latch-up protection
? JESD78B Class II exceeds 500 mA
? ESD protection:
HBM JESD22-A114F exceeds 2000 V
MM JESD22-A115-A exceeds 200 V

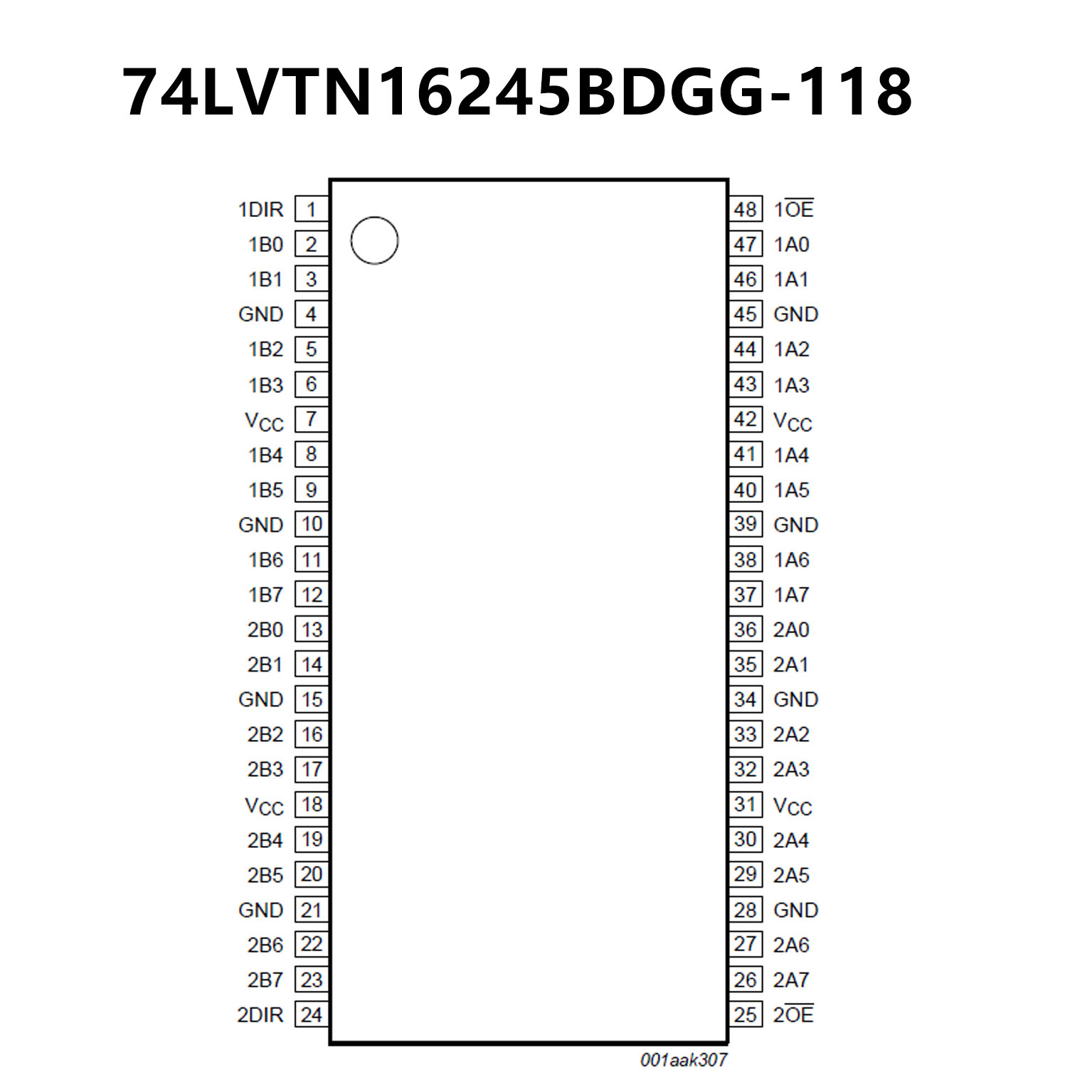

PIN CONFIGUTION
