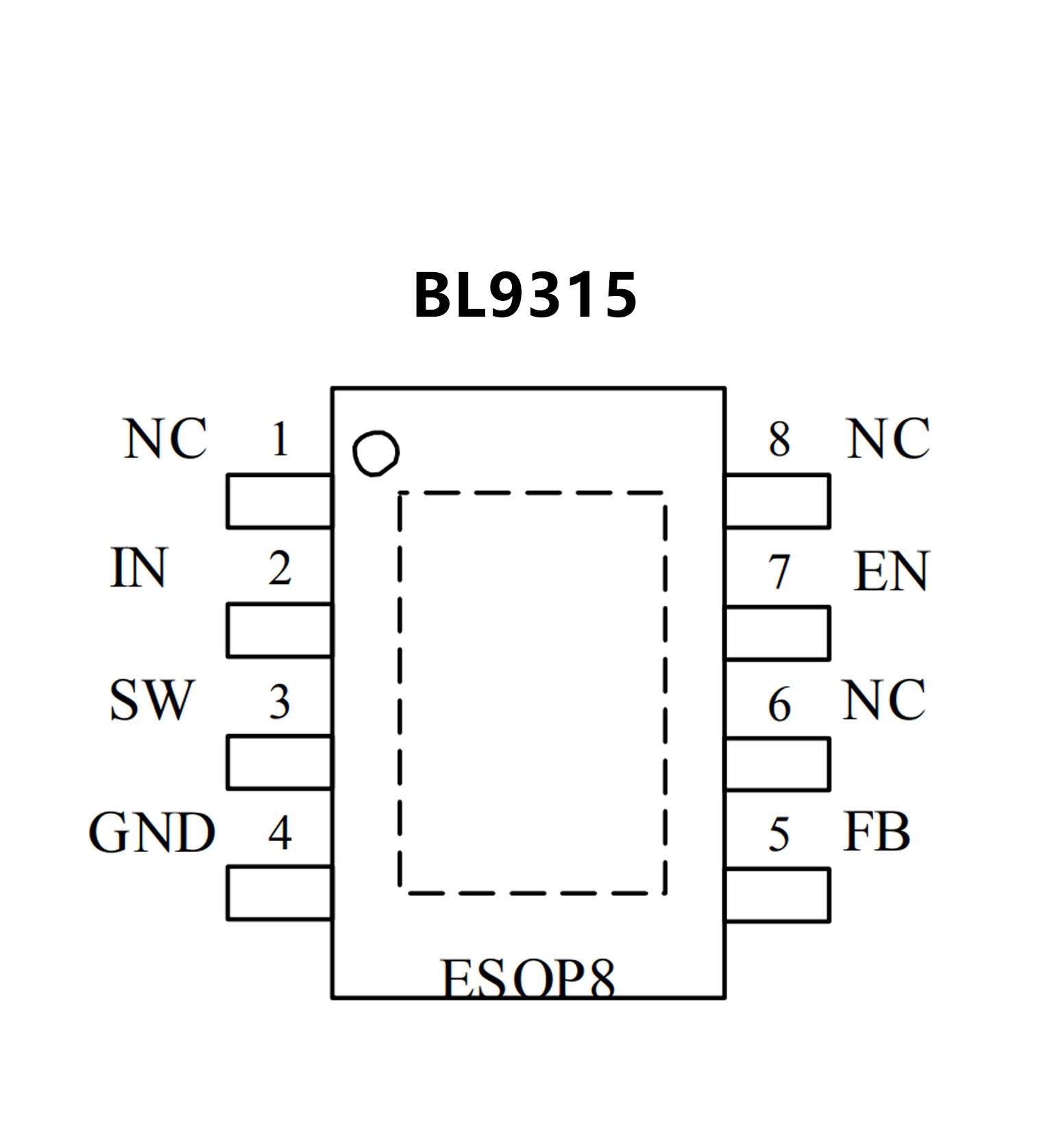

BL9315.pdf? High Efficiency: Up to 95%
? Capable of Delivering 3.0A
? 1.5MHz Switching Frequency
? No External Schottky Diode Needed
? Low dropout 100% Duty operation
? Internal Compensation and Soft-Start
? Current Mode control
? 0.6V Reference for Low Output voltages
? Logic Control Shutdown (IQ<1μA)
? Over Voltage Protection
? Short Circuit Protection
? Thermal shutdown and UVLO
? Power good indicator
? Available in ESOP8 package

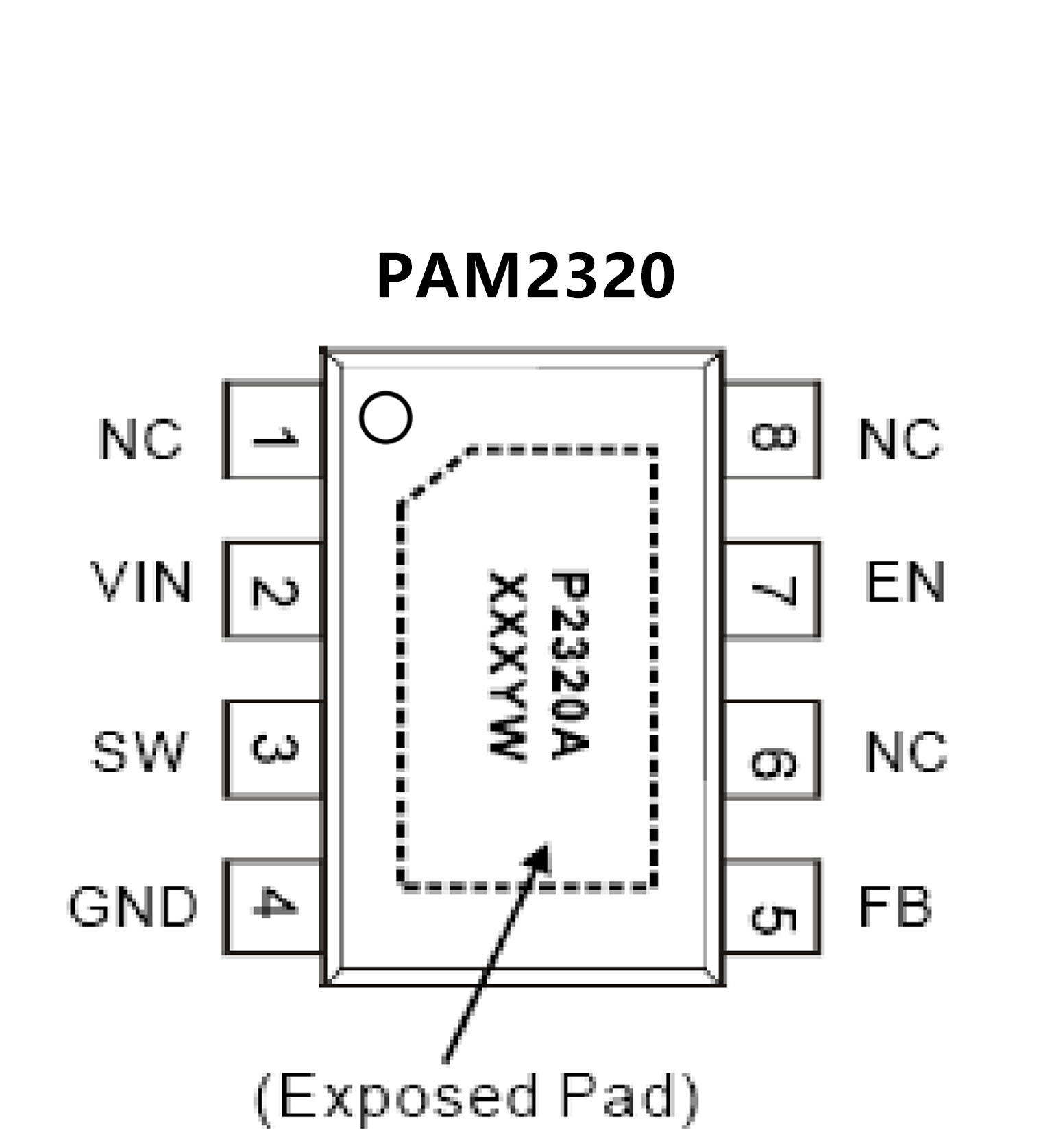

? Output Current: Up to 3A
? Output Voltage: 0.6V to VIN
? Input Voltage: 2.7V to 5.5V
? Efficiency Up to 95%
? 42μA (Typ) No Load Quiescent Current
? Shutdown Current: <1μA
? 100% Duty Cycle Operation
? 1.5MHz Switching Frequency
? Internal Soft Start
? No External Compensation Required
? Current Limit Protection
? Thermal Shutdown
? PSOP-8 Package
