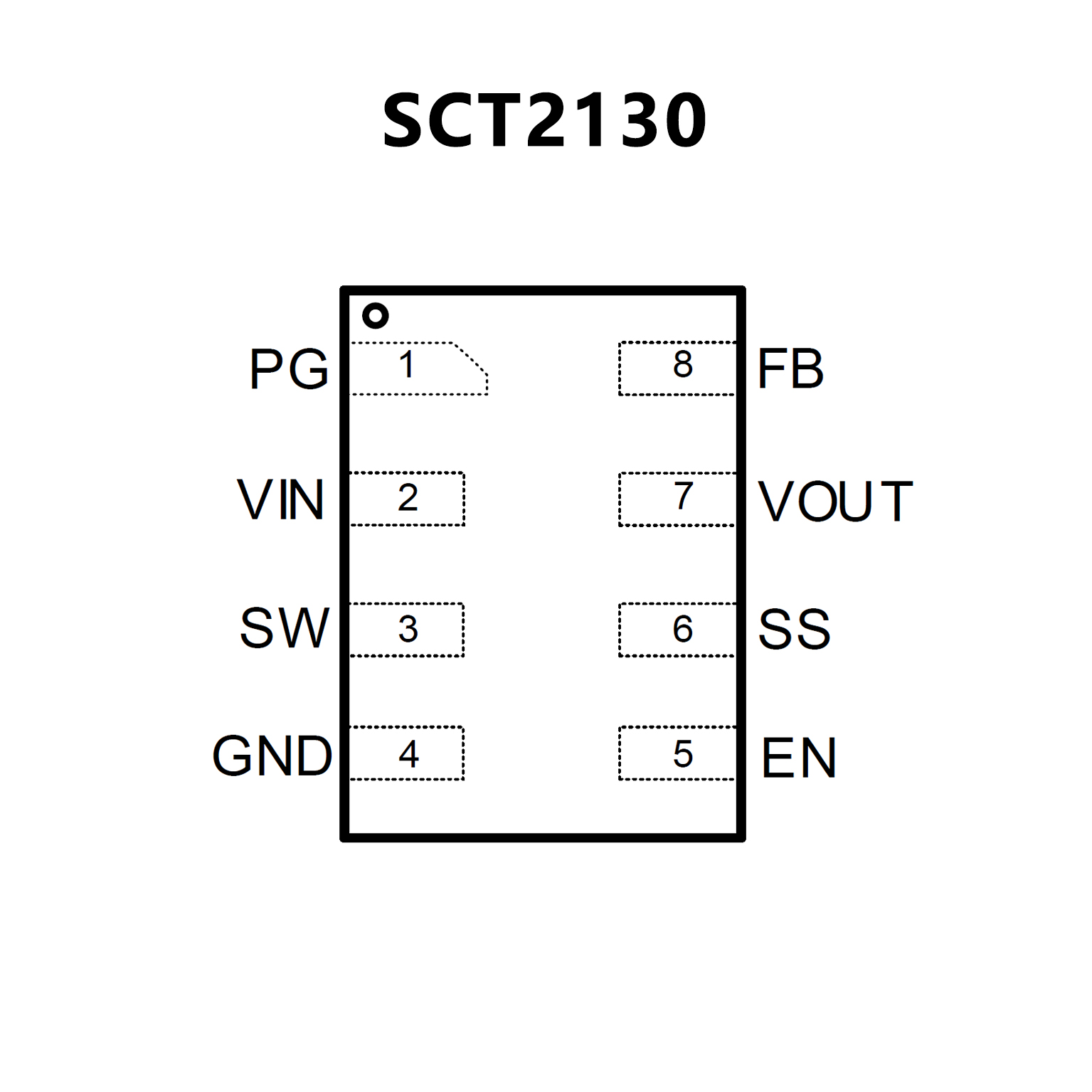

SCT2130.pdf? Input Voltage Range: 2.8V-6V
? Up to 3A Continuous Output Current
? Low Shutdown Current: 0.7uA
? 0.6±1% Feedback Reference Voltage
? 2.1MHz Switching Frequency
? Integrated 25m? High-Side and 20mΩ Low-
Side Power MOSFETs
? Adjustable output voltage from 0.6V to 5V
? Active output discharge
? Programmable Soft Start Time
? Power Good Indicator
? Integrated Protection Feature
- Cycle-by-cycle current limit
- Under-voltage Lockout
- HICCUP Over Current Protection
- Thermal Shutdown Protection:160°C
? QFN-8L 1.5mm*2mm Package
? Available in a Wettable Flank Package
? DCS-Control? topology

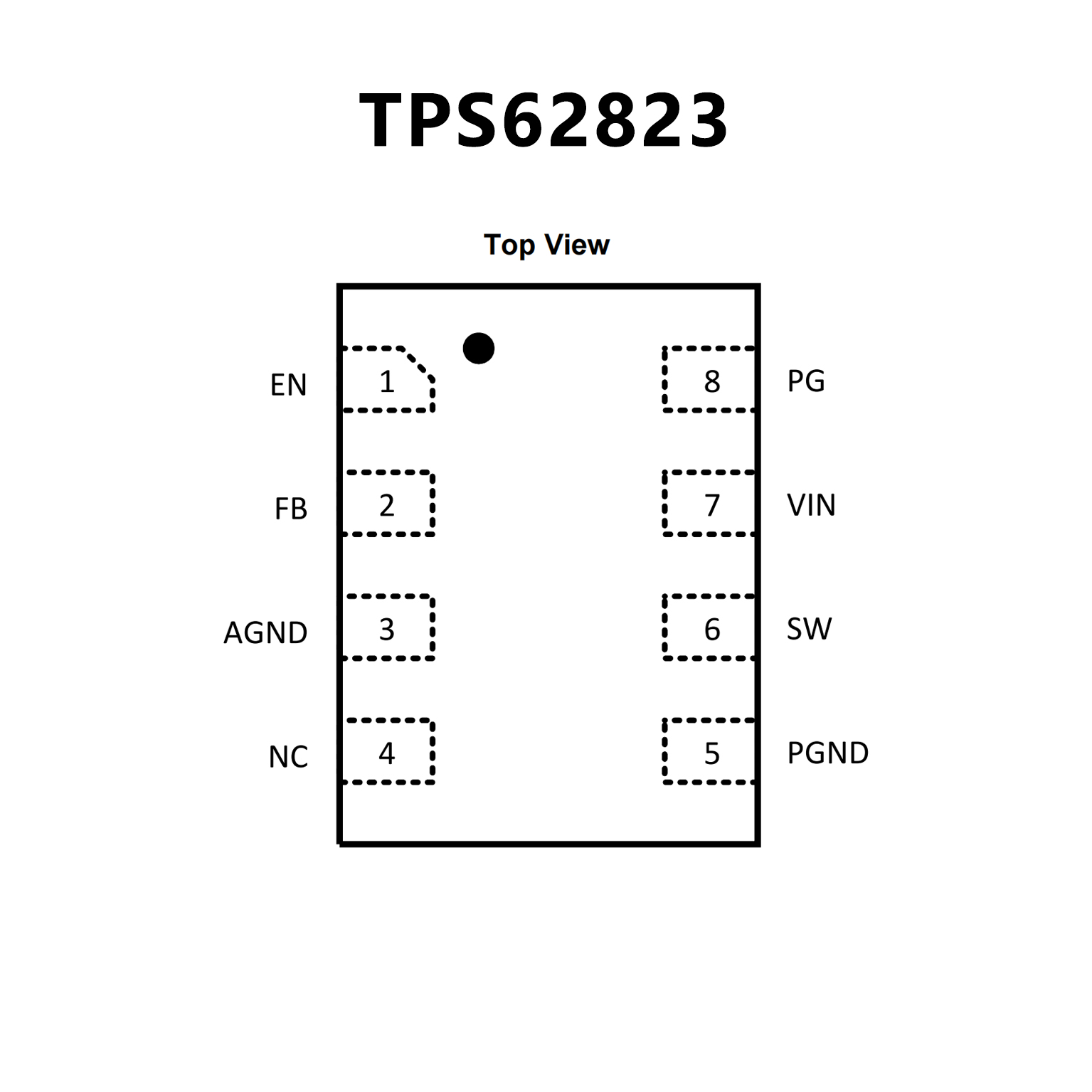

? 26-mΩ/25-mΩ internal power switches
(TPS62823)
? Up to 3-A output current (TPS62823)
? Very low quiescent current of 4 μA
? Switching frequency of typically 2.2 MHz
? 1% feedback voltage accuracy (full temp. range)
? Enable (EN) and power good (PG)
? Adjustable output voltage from 0.6 V to 4 V
? 100% duty-cycle mode
? Internal soft-start circuitry
? Seamless power save mode transition
? Undervoltage lockout
? Active output discharge
? Cycle-by-cycle current limit
? HICCUP short-circuit protection
? Over temperature protection
? CISPR11 class B compliant
? Create a custom design using the TPS62822 with
the WEBENCH? Power Designer
