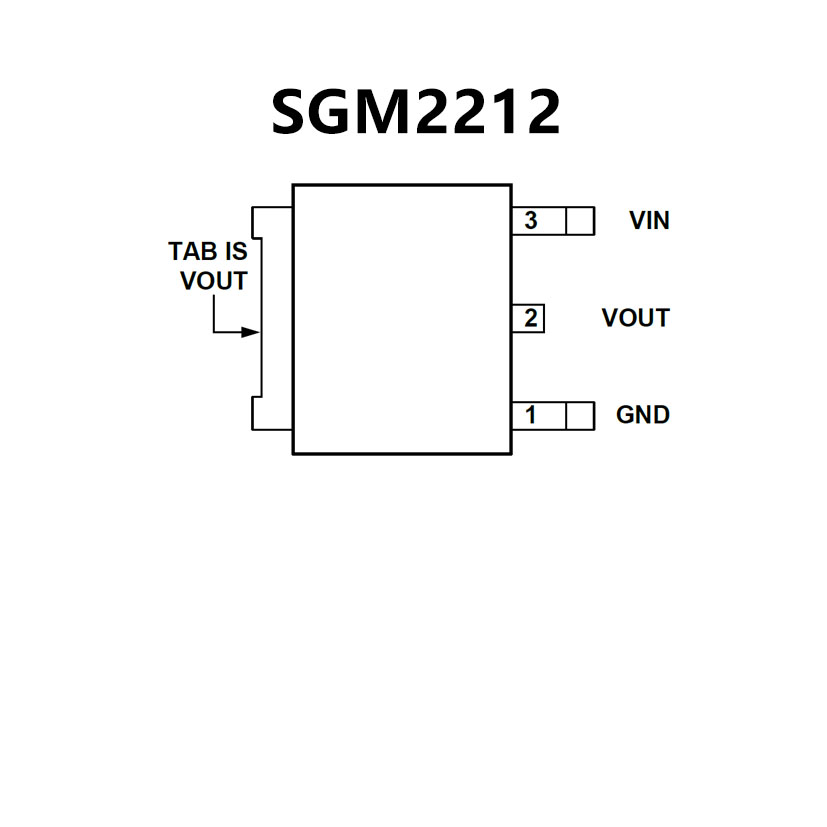

SGM2212-3.3.pdf? Input Voltage Range: 2.7V to 20V
? Output Current: 800mA
? Fixed Output Voltages:1.8V, 2.5V, 2.8V, 3.3V, 5V
? Adjustable Output Voltage Range: 1.25V to 15V
? Output Voltage Accuracy: ±1% at +25℃
? Line Regulation: 0.012% (MAX)
? Load Regulation: 0.4% (MAX)
? Stable with Small Case Size Ceramic Capacitors
? Output Current Limit
? Thermal Shutdown Protection
? -40℃ to +125℃ Operating Temperature Range
? Available in Green TO-252-2, TO-263-3,
SOT-223-3 and TDFN-3×3-8L Packages

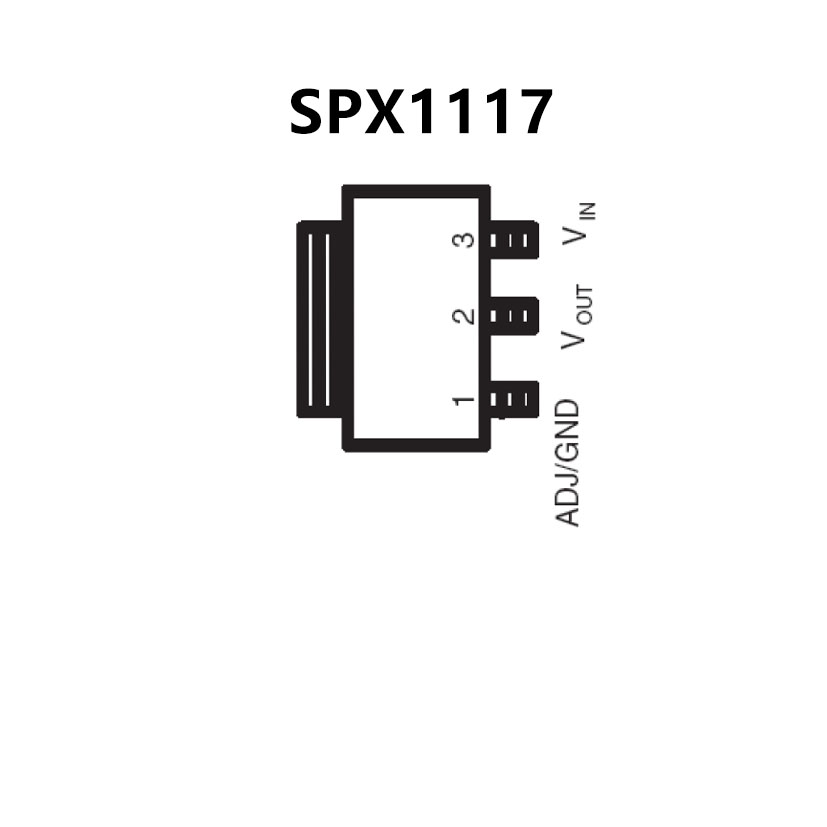

? Guaranteed 800mA Output Current
? Guaranteed 1A Peak Current
? Three Terminal Adjustable or
Fixed1.5V, 1.8V, 2.5V, 3.3V and 5V
? Low Quiescent Current
? Low Dropout Voltage of 1.1V at 800mA
? 0.1% Line and 0.2% Load Regulation
? Stable with 2.2μF Ceramic Capacitor
? Overcurrent and Thermal Protection
? Lead Free, RoHS Compliant SOT223Package
