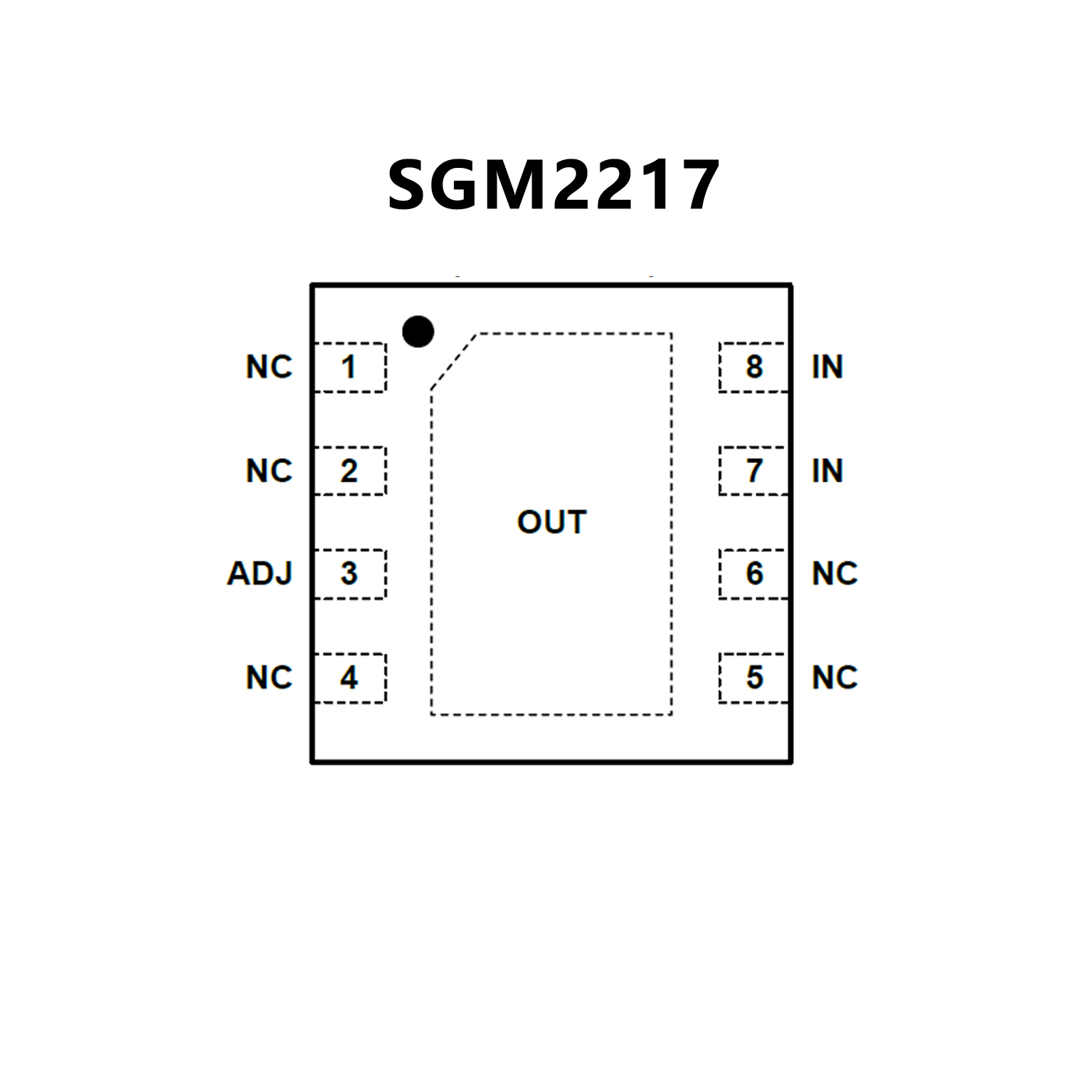

SGM2217.pdf? Wide Input Voltage Range: 2.8V to 30V
? Adjustable Output Voltage Range: 1.25V to 26V
? Fixed Output Voltages:
1.8V, 2.5V, 2.8V, 3.0V, 3.3V, 5.0V and 12V
? Maximum Output Current: 1.5A
? Low Dropout Voltage: 1.3V (TYP) at 1.5A
? Line Regulation: 0.04% (TYP)
? Load Regulation: 0.04% (TYP)
? Current Limiting and Thermal Protection
? Output Voltage is Stable with Ceramic Capacitor
? -40℃ to +125℃ Operating Temperature Range
? Available in Green TO-263-3A and TDFN-4×4-8L Packages

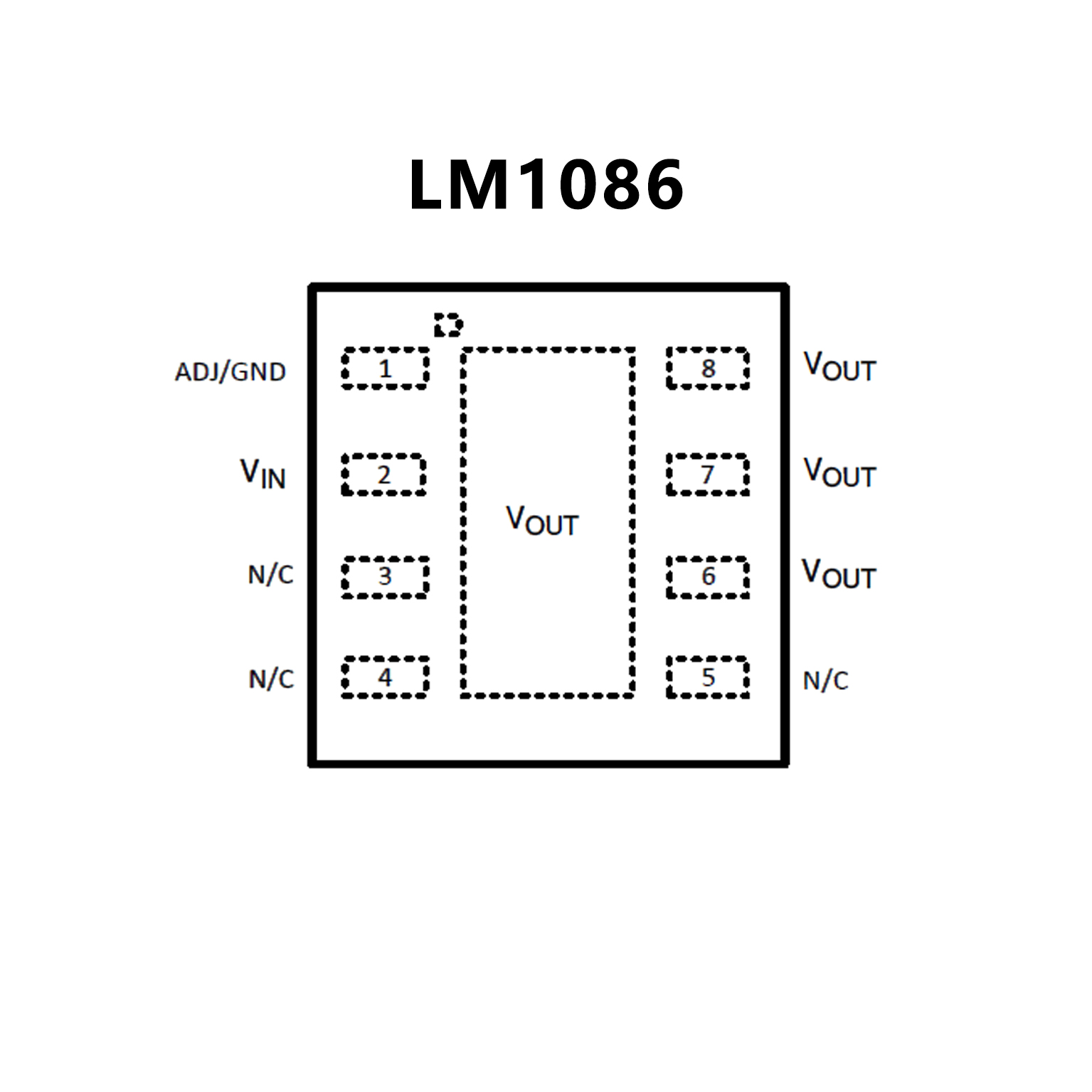

? Available in Fixed 1.8-V, 2.5-V, 3.3-V, 5-V
? Available in Adjustable Version
? Current Limiting and Thermal Protection
? 2% Output Accuracy
? Output Current 1.5 A
? Line Regulation 0.015% (Typical)
? Load Regulation 0.1% (Typical)
? Maximum Input Voltage up to 29V
? Minimum Adjustable Output Voltage Down to 1.25V
? Stable with Ceramic Output Capacitor with ESR
? Temperature Range : -40°C to 125°C
