SGM2220.pdf? Operating Input Voltage Range: 2.2V to 13V
? Fixed Outputs of 1.8V, 2.8V, 3.0V, 3.3V, 3.9V,
4.0V, 4.1V, 4.2V and 5.0V
? Low Power Consumption: 1μA (TYP) at No Load
? Low Dropout Voltage:
330mV (TYP) at 300mA, VOUT = 5.0V
? Current Limiting and Thermal Protection
? Stable with Small Case Size Ceramic Capacitors
? UVLO with Hysteresis
? Reverse Current Protection when VOUT > VIN
? -40℃ to +125℃ Operating Temperature Range

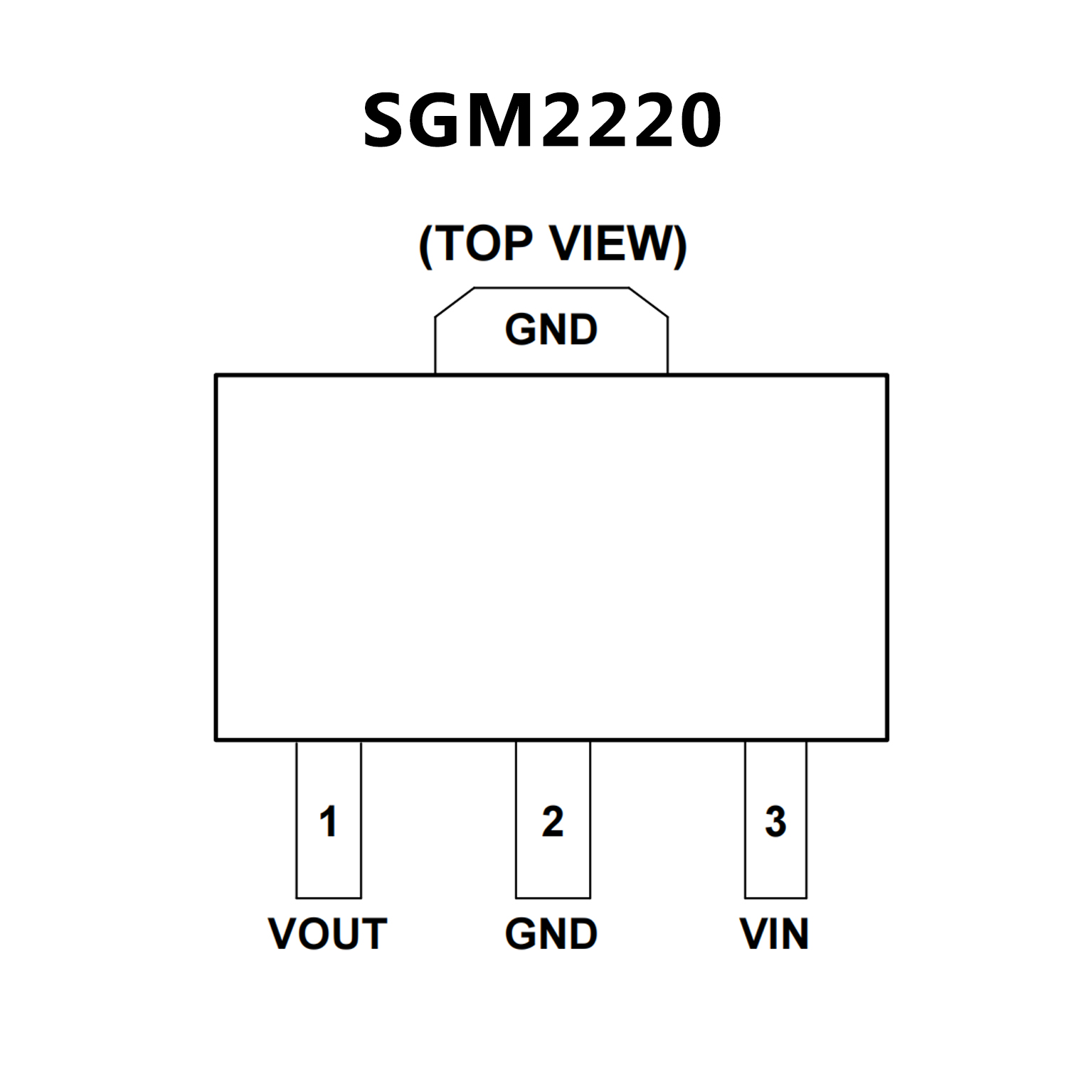

? Available in Green SOT-23-5 and SOT-89-3 Packages
? Maximum Output Current Dropout Voltage
250mA (TYP.) : 0.16V @ 100mA : 0.40V @ 200mA
? Maximum Operating Voltage Output Voltage
Range Fixed Voltage Accuracy
10V : 1.3V ~ 6.0V (0.1V increments)
±1% (VOUT(T)>2.0V)
Low Power Consumption±2% : 2.0μA (TYP.)
? Operating Ambient Temperature
-40℃ ~ 85℃ : SOT-25, SOT-89 USP-6B
? Environmentally Friendly EU RoHS Compliant,
Pb Free Tantalum or Ceramic Capacitor compatible
