SGM3836A.pdf? 2.9V to 4.5V Input Voltage Range
? Synchronous Boost Converter (AVDD)
5.8V to 7.9V Output Voltage (Programmable)
6.1V Default Output Voltage
1% Accuracy
100mA Output Current Capability
VIN to VOUT and VOUT to VIN Isolation
? Synchronous Boost Converter (ELVDD)
4.6V to 5.0V Output Voltage (Programmable)
4.6V Default Output Voltage
1% Accuracyu External Output Voltage Sensing Pin
for Load Drop Compensation
VIN to VOUT and VOUT to VIN Isolation
? Synchronous Inverting Buck-Boost Converter (ELVSS)
-5.4V to -1.4V Output Voltage (Programmable)
-2.5V Default Output Voltage
1.2% Accuracy at -2.5V
VIN to VOUT and VOUT to VIN Isolation
? ELVDD & ELVSS Combined Output Current Capability
Up to 800mA at 4.6V/-2.5V (VIN = 3.1V)
Up to 780mA at 4.6V/-2.7V (VIN = 3.1V)
Up to 750mA at 4.6V/-3.0V (VIN = 3.1V)
Up to 630mA at 4.6V/-4.0V (VIN = 3.1V)
Up to 510mA at 4.6V/-5.4V (VIN = 3.1V)
? Short Circuit Protection
? Thermal Shutdown
? VELVSS Start-Up Delay: 10ms
? Short Circuit and OLP Detect Time: 1ms

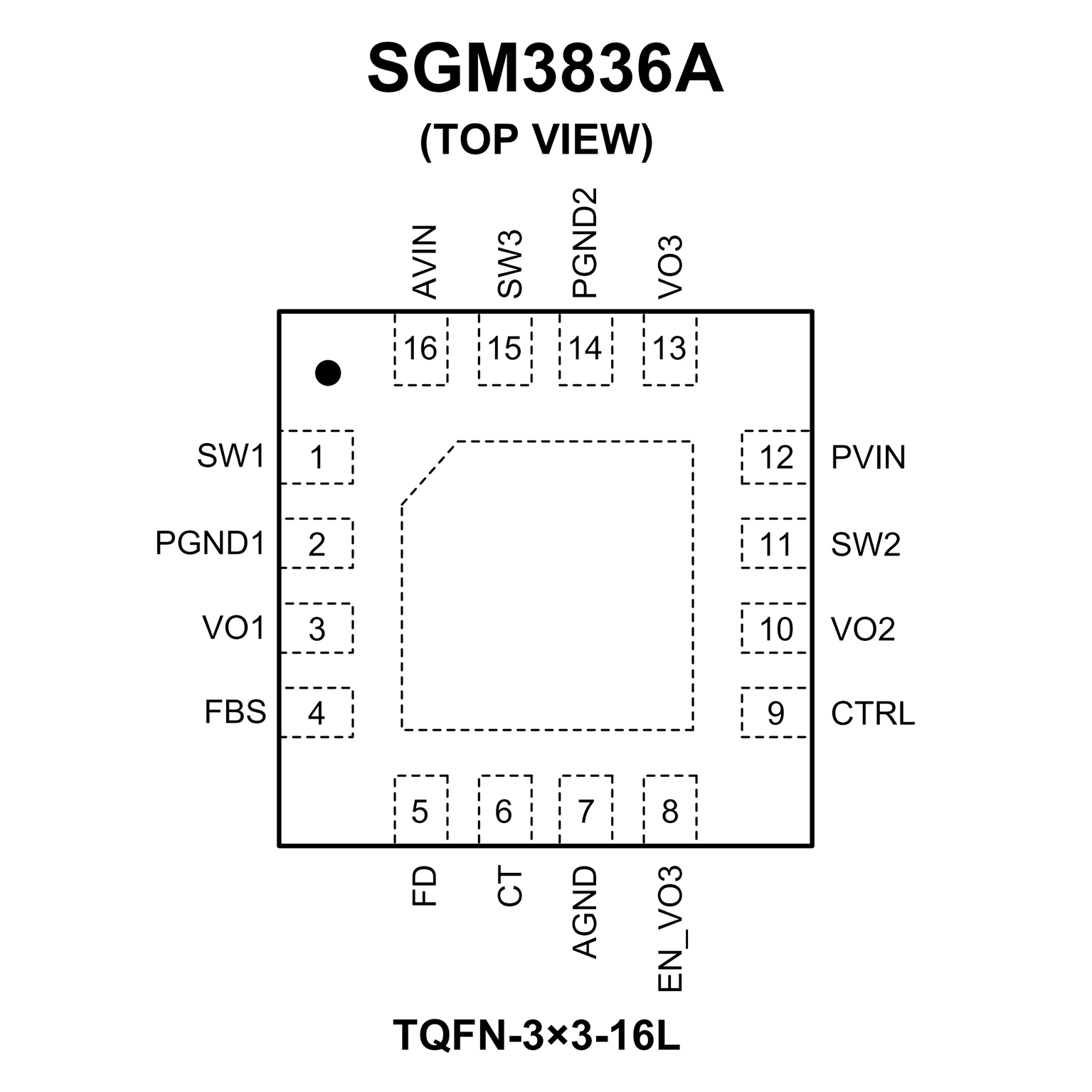

? Available in Green TQFN-3×3-16L Package
