4-/6-/8-Channel, 16-/14-Bit, Simultaneous-Sampling ADCs, SGM51652S8 Replace MAX11049.
SGM51652S8
SGM51652S8.pdf
FEATURES
? 8 Channels Simultaneous Sampling
SGM51652S8 Supports 500kSPS on All Channels
Simultaneously
SGM51622S8 Supports 250kSPS on All Channels
Simultaneously
? True Bipolar Analog Input Ranges: ±10V, ±5V
? Single 5V Analog Supply and 2.7V to 5V VDRIVE
? Input Buffer with 1MΩ Analog Input Impedance
? On-Chip Accurate Reference and Reference Buffer
? Configurable Oversampling Capability with Digital Filter
? Flexible Parallel Interface or Serial Interface
SPI-Compatible
? Performance
SNR: 91.2dB (TYP), THD: -106dB (TYP)
INL: ±1.5LSB (TYP), DNL: +1LSB/-0.65LSB (TYP)
TBDkV ESD Rating on Analog Input Channels
? Operating Temperature Range: -40℃ to +125℃
? Available in a Green LQFP-10×10-64L Package

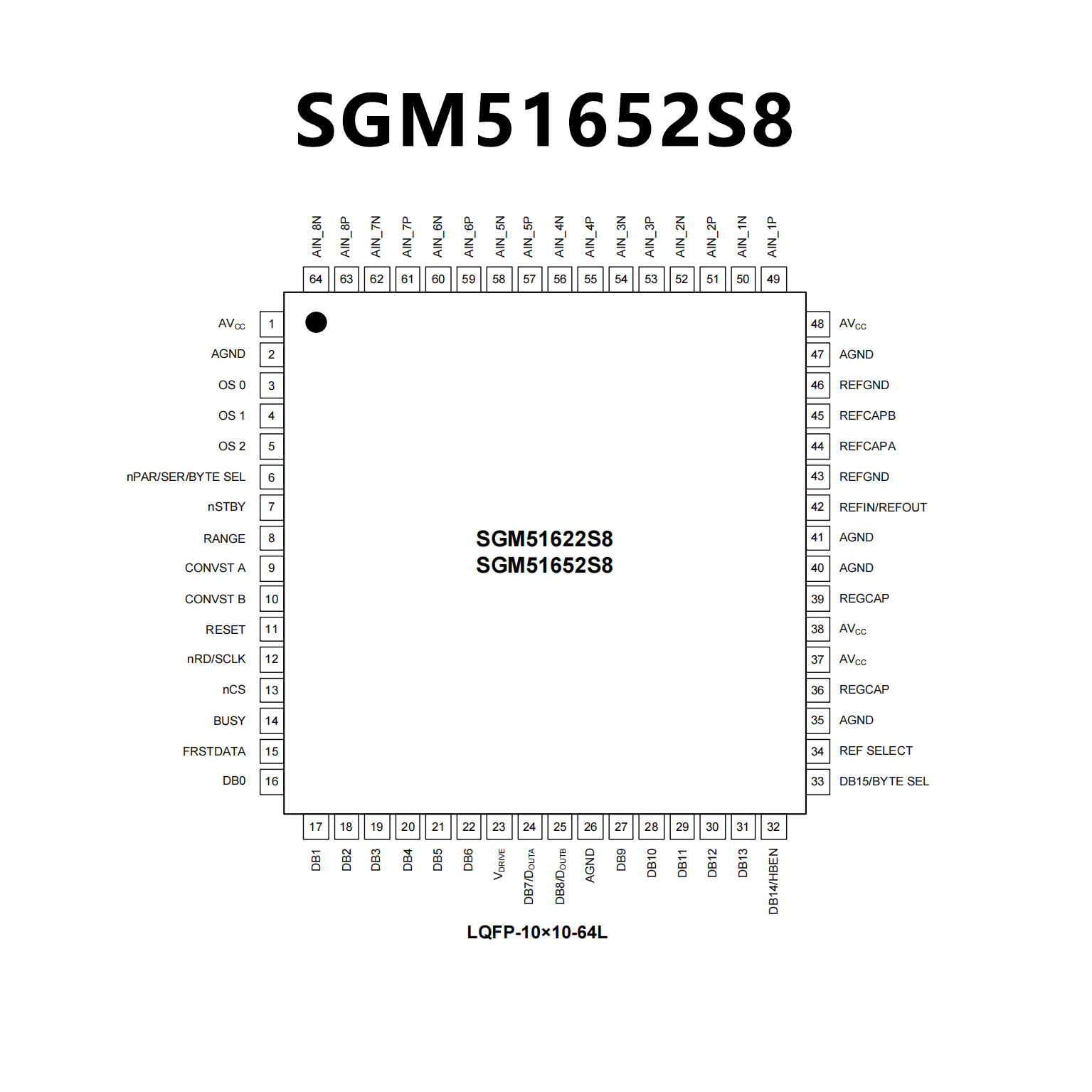

PIN CONFIGUTION

優勢替代
FEATURES
? 16-Bit ADC (MAX11047/MAX11048/MAX11049)
? 14-Bit ADC (MAX11057/MAX11058/MAX11059)
? 4-Channel ADC (MAX11047/MAX11057)
? 6-Channel ADC (MAX11048/MAX11058)
? 8-Channel ADC (MAX11049/MAX11059)
? Single Analog and Digital Supply
? High-Impedance Inputs Up to 1G?
? On-Chip T/H Circuit for Each Channel
? Fast 3μs Conversion Time
? High Throughput: 250ksps for Each Channel
? 16-/14-Bit, High-Speed, Parallel Interface
? Internal Clocked Conversions
? 10ns Aperture Delay
? 100ps Channel-to-Channel T/H Matching
? Low Drift, Accurate 4.096V Internal Reference
Providing an Input Range of 0 to 5V
? External Reference Range of 3.0V to 4.25V,
Allowing Full-Scale Input Ranges of +3.7V to +5.2V
? 56-Pin TQFN (8mm x 8mm) and 64-Pin TQFP
(10mm x 10mm) Packages
? Evaluation Kit Available (MAX11046EVKIT+)

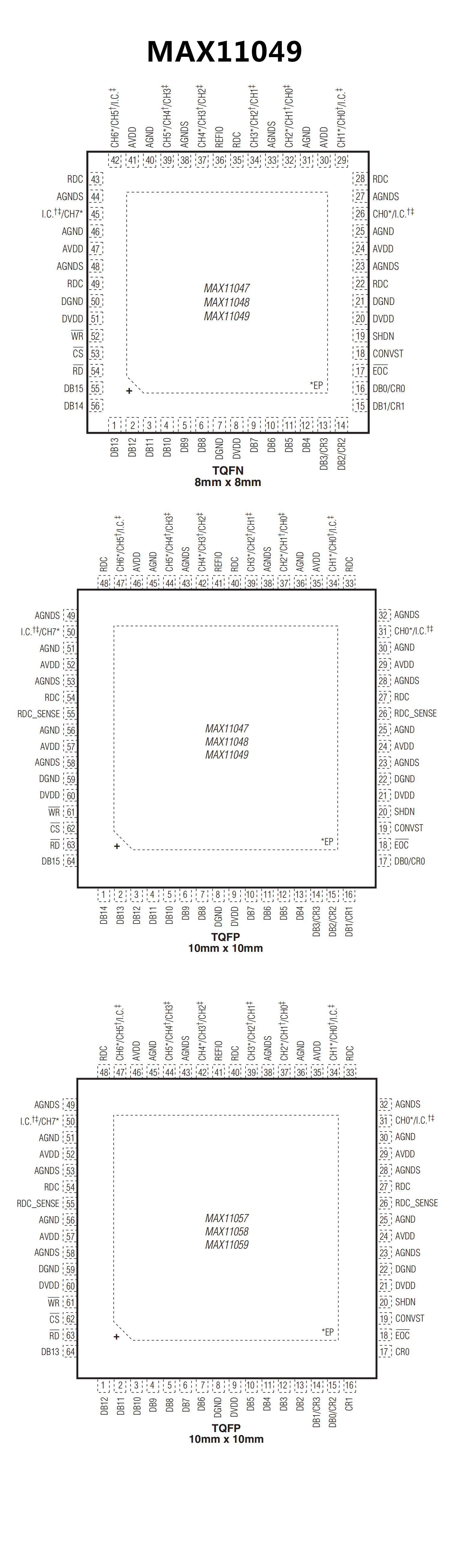

PIN CONFIGUTION
