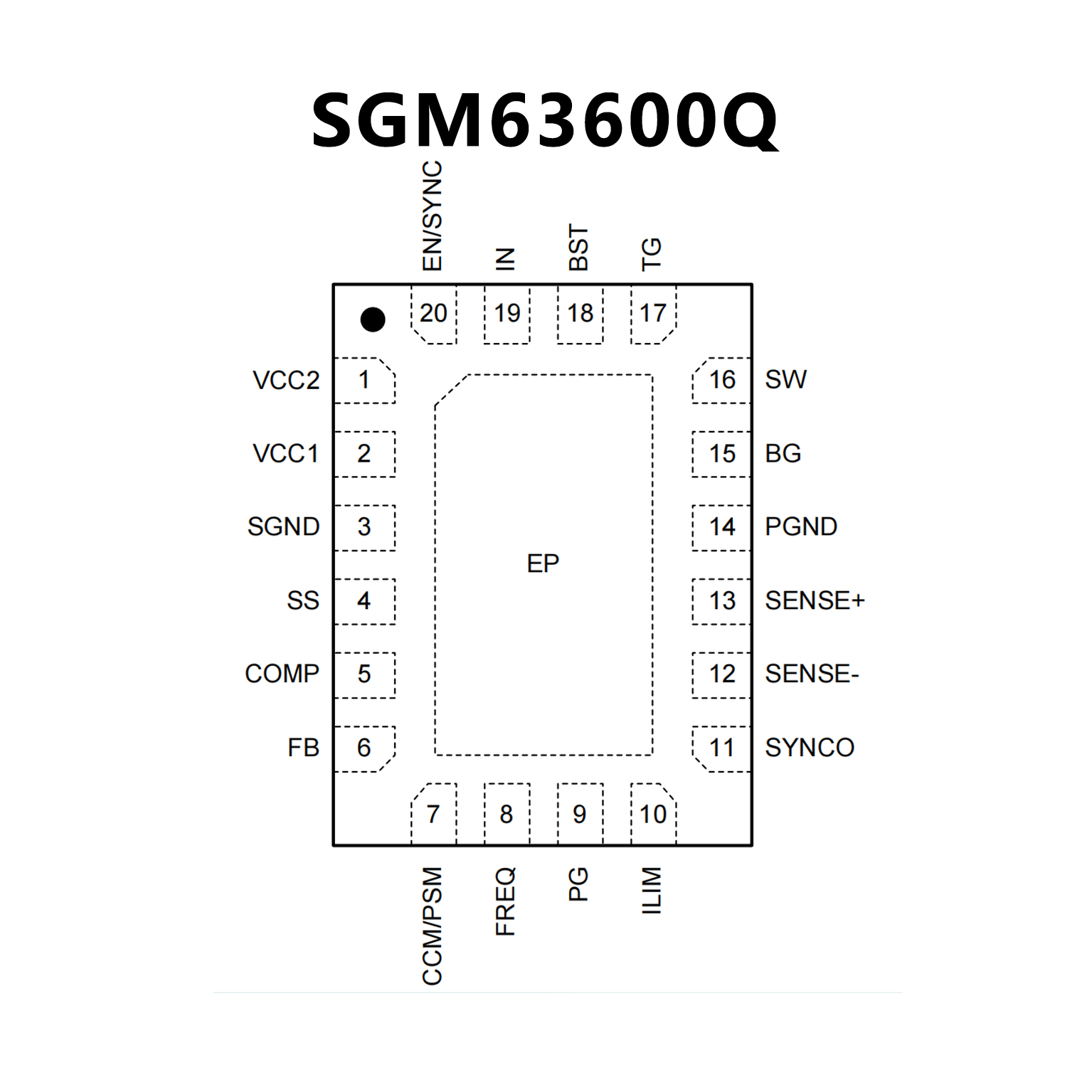

SGM63600Q.pdf? AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1:
TA = -40℃ to +125℃
? Integrated Dual N-MOSFET Drivers
? Wide 4V to 60V Input Voltage Range
? 100kHz to 1MHz Adjustable Frequency Range
? Synchronous Output (SYNCO) with 180o Phase
Shift
? Up to 99% Duty Cycle in Low Dropout Mode
? Adjustable Soft-Start with Pre-biased Capability
? Adjustable UVLO Protection through EN Input
? Power Good (PG) Indicator
? External Power Supply (VCC2) for Internal LDO
? Programmable PSM and CCM Operations
? Adjustable Cycle-by-Cycle Current Limit
? Hiccup Mode Current Limit
? Thermal Shutdown
? OVP and OCP Output Protections
? Frequency Fold-back Short Circuit Protection
? Available in a Green TQFN-3×4-20AL Package

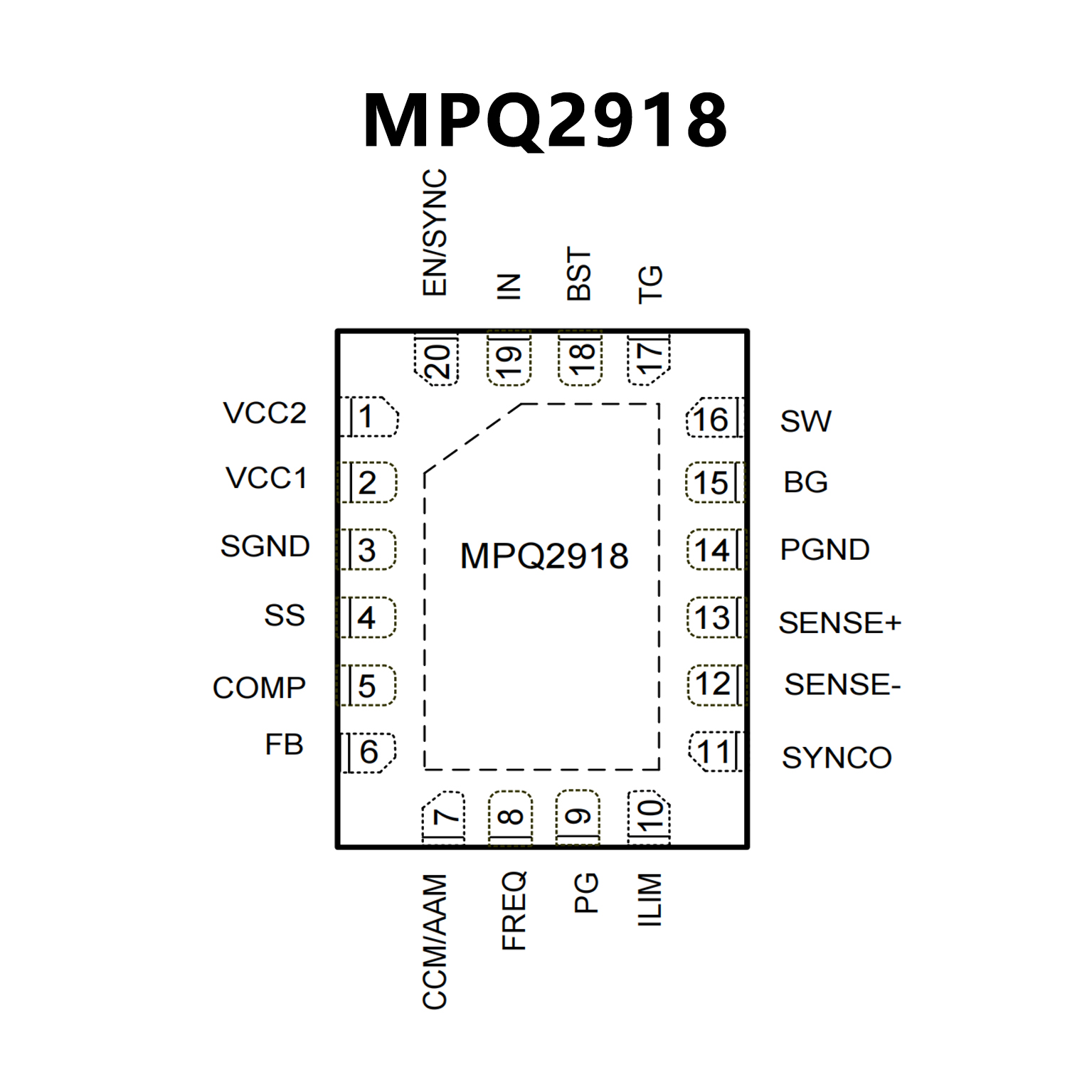

? Wide 4V to 40V Operating Input Range
? Dual N-Channel MOSFET Driver
? 0.8V Voltage Reference with ±1.5%
Accuracy Over Temperature
? Low Dropout Operation: Maximum Duty
Cycle at 99.5%
? Programmable Frequency Range: 100kHz -1000kHz
? External Sync Clock Range: 100kHz -1000kHz
? 180° Out-of-Phase SYNCO Pin
? Programmable Soft Start (SS)
? Power Good (PG) Output Voltage Monitor
? Selectable Cycle-by-Cycle Current Limit
? Output Over-Voltage Protection (OVP)
? Over-Current Protection (OCP)
? Internal LDO with External Power Supply Option
? Programmable Forced CCM and AAM
? Available in TSSOP-20EP and QFN-20
(3mmx4mm) Packages
? Available in a Wettable Flank Package
? Available in AEC-Q100 Grade-1
