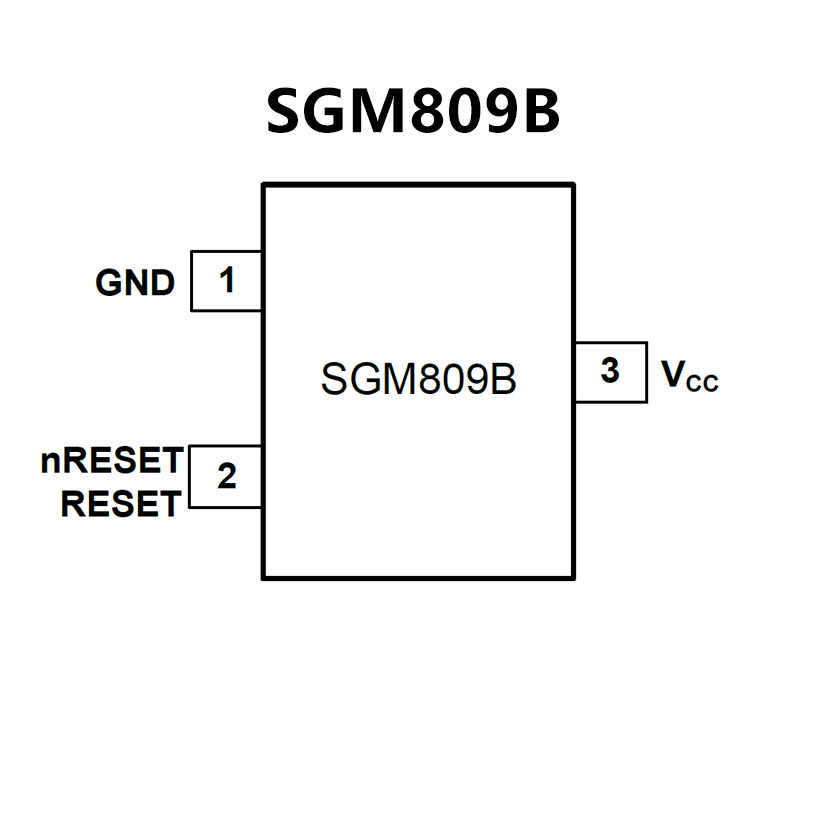

SGM809B-SXN3LG.pdf? Precision Voltage Monitor: 3V, 3.3V, 5V Options
? Superior Upgrade for MAX803/MAX809/MAX810
and ADM803/ADM809/ADM810
? Fully Specified over Temperature
? VCC Transient Immunity
? Low Power Consumption: 240nA (TYP)
? Reset Assertion Down to 1V VCC
? 330ms Power-On Reset (TYP)
Open-Drain nRESET Output (SGM803B)
Push-Pull nRESET Output (SGM809B)
Push-Pull RESET Output (SGM810B)
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging
SGM803B Available in SOT-23-3 and SOT-23
SGM809B Available in SOT-23-3 and SOT-23
SGM810B Available in SOT-23-3 and SOT-23

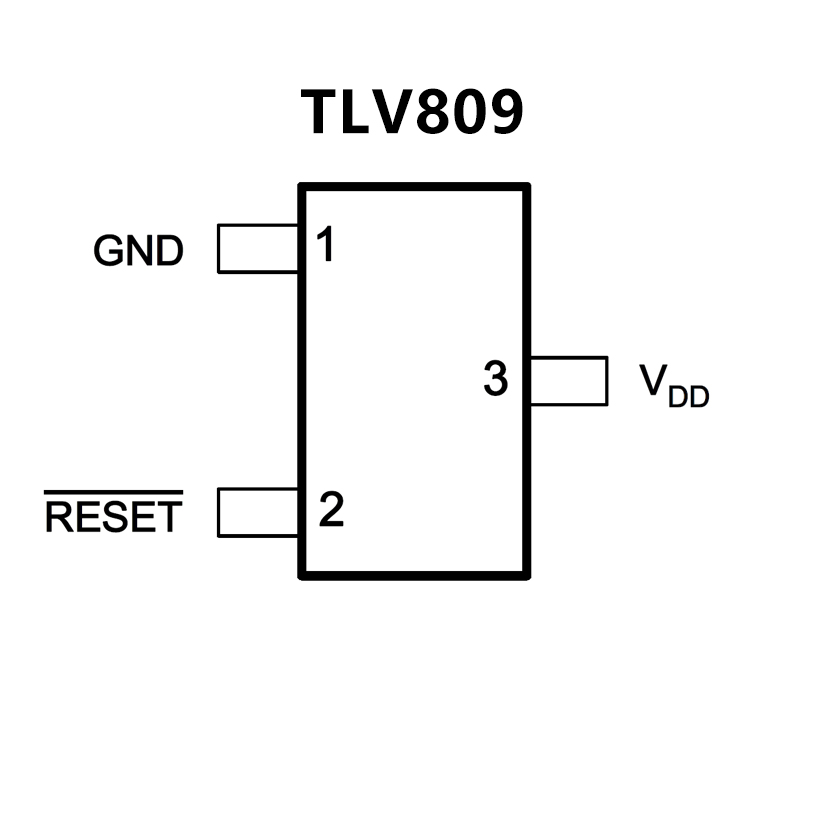

? Precision supply voltage monitor:
2.5 V, 3 V, 3.3 V, 5 V
? Power-on reset generator with a
fixed delay time of 200 ms
? Supply current: 9 μA (typical)
? Temperature range: –40°C to +85°C
? 3-Pin SOT-23 package
? Pin-for-pin compatible with the MAX809
