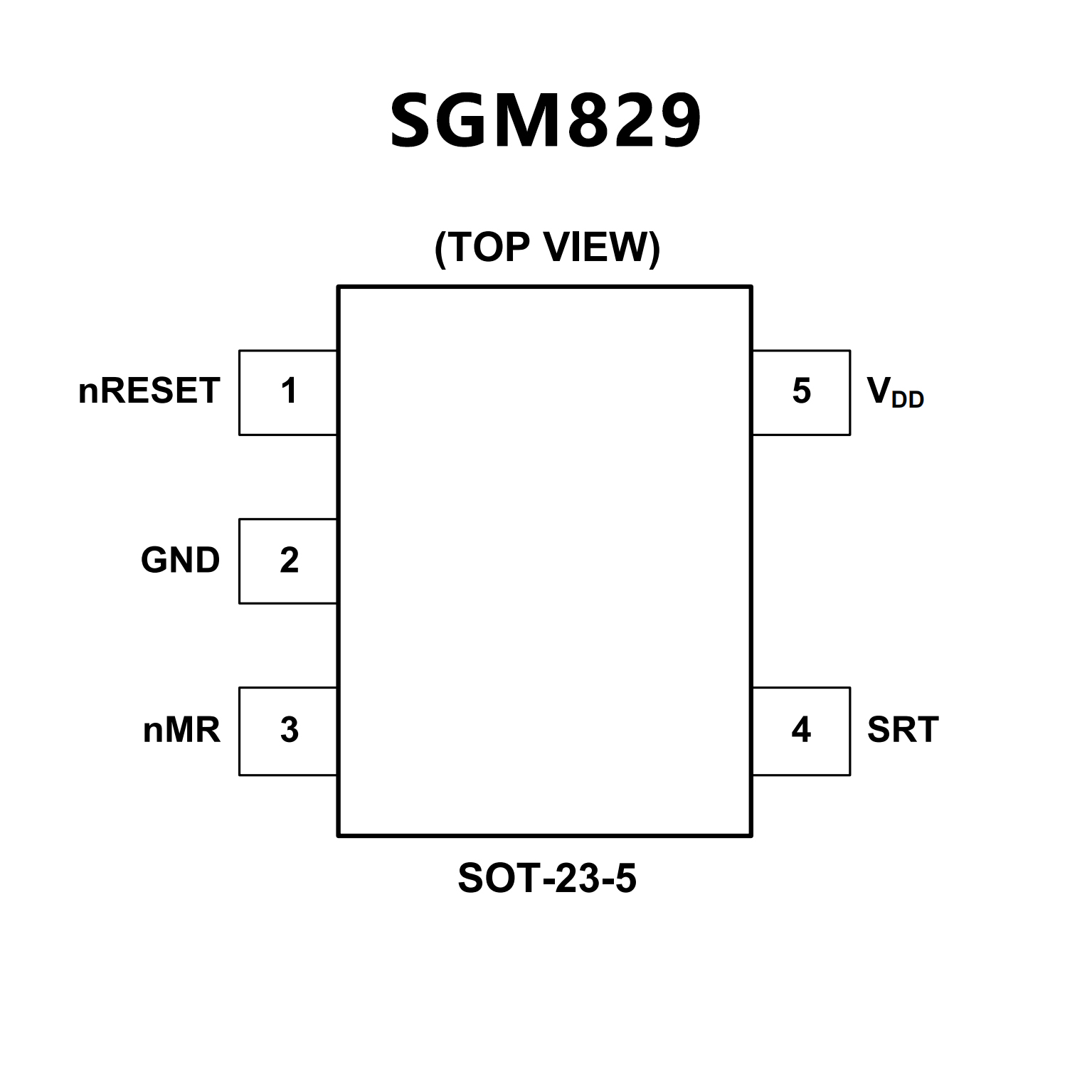

SGM829.pdf? Adjustable Reset Timeout Period: 1.25ms to 10s
? Available in a Green SOT-23-5 Package
? Wide operating voltage: 1.5 V to 10 V
? Nano supply current: 300 nA (Typ), 700 nA (Max)
? Fixed threshold voltage (VIT-)
Threshold from 1.6 V to 4.9 V in 0.1-V steps
High accuracy: 1% (Typ), 1.5% (Max)
Built-in hysteresis (VIT+)
1.6 V < VIT- ≤ 3.0 V = 100 mV (Typical)
3.1 V ≤ VIT- < 4.9 V = 200 mV (Typical)
? Start-up delay (tSTRT): 220 μs (Typ), 350 μs (Max)
? Programmable reset time delay (tD):
50 μs (no capacitor) to 6.2 s (10-μF)
? Active-low manual reset (MR)
? Three output topologies:

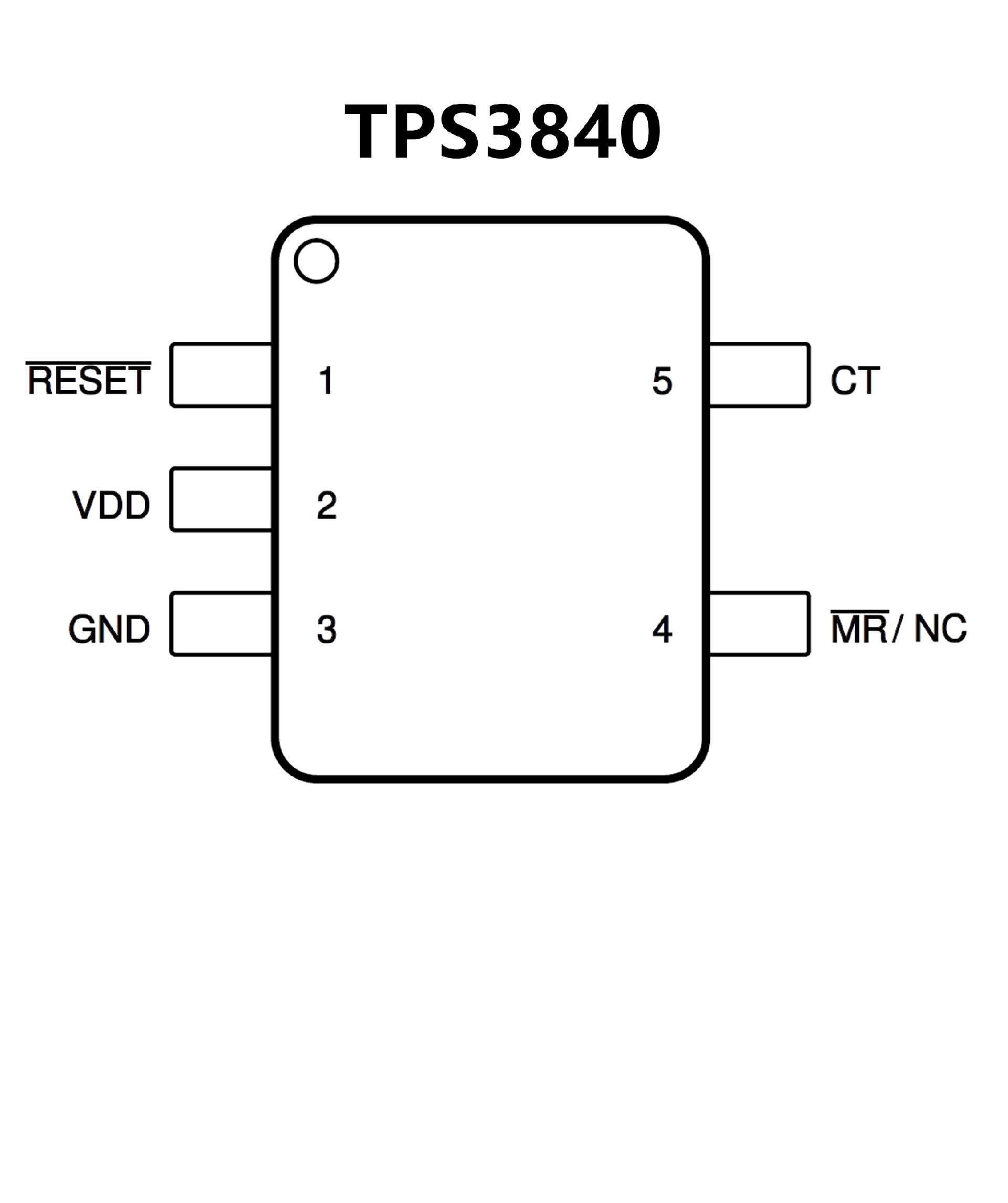

TPS3840DL: open-drain, active-low (RESET),
requires pull-up resistor
TPS3840PL: push-pull, active-low (RESET)
TPS3840PH: push-pull, active-high (RESET)
? Wide temperature range: –40°C to +125°C
? Package: SOT23-5 (DBV)
