SGM8431-1Q.pdf? AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
? High Output Current: ±200mA (MIN)
? Rail-to-Rail Input and Output
? Supply Voltage Range: 4.5V to 36V
? Supply Current: 10mA (TYP)
? Input Bias Current: ±250pA (MAX) at +25℃
? Open-Loop Voltage Gain: 106dB (TYP)
? Unity-Gain Frequency: 4.5MHz (TYP)
? Slew Rate: 3.5V/μs (TYP)
? Thermal Shutdown
? Current-Limit Protection

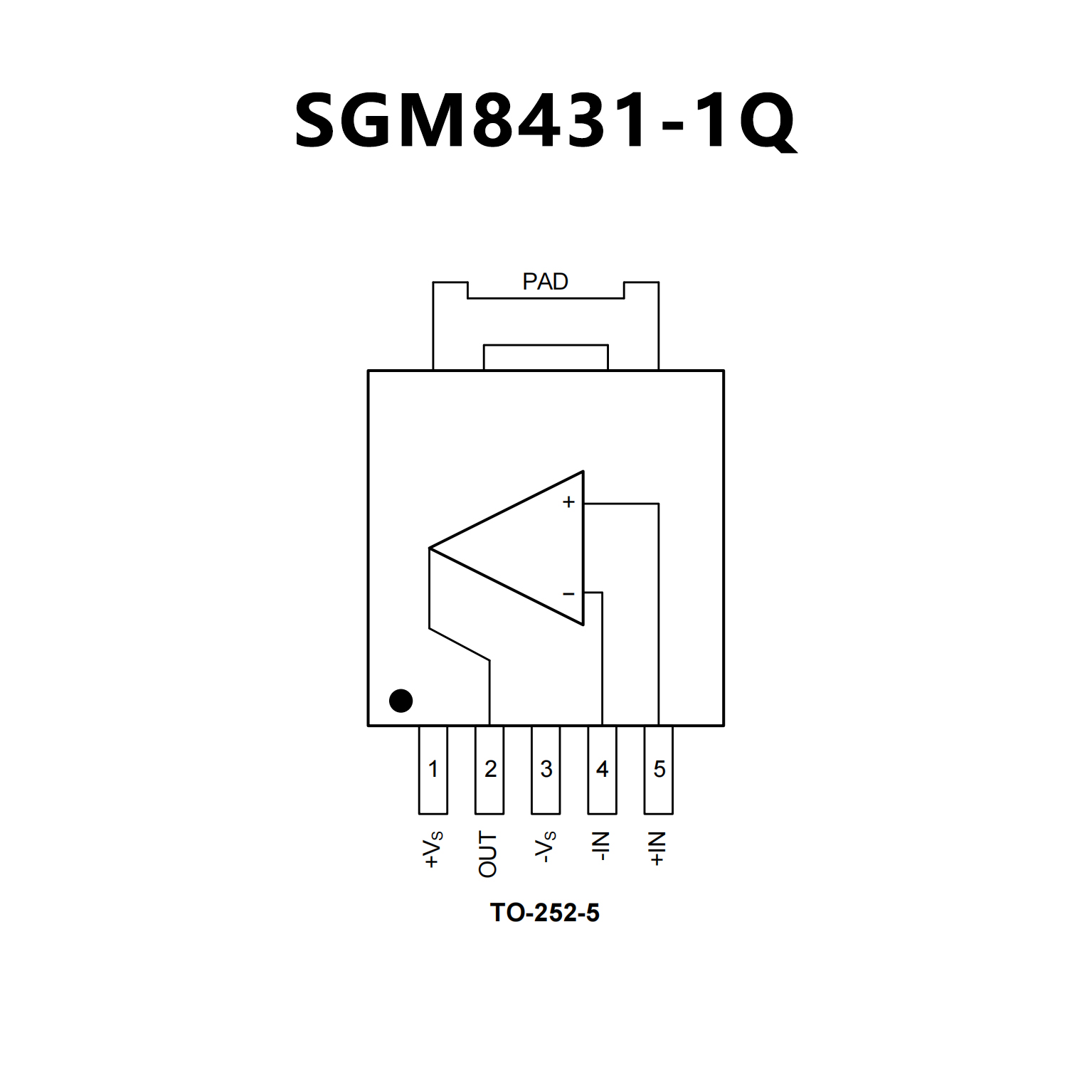

? Available in a Green TO-252-5 Package
? High output current ±100mAtyp. (200mApp typ.)
? Wide Operating Temperature Topr = -40oC to +125oC
? Rail-to-Rail Input / Output
? Enhanced RF noise immunity
? Wide Operating Voltage 6.8V to 36V
? Supply Current 9.5mAtyp.
? Open Loop Gain 100dB typ.
? Input Bias Current 1pA typ.
? Slew Rate 3.5V/μs typ.
? Unity Gain Frequency 1.5MHz typ.
? Thermal shutdown
? Current Limit

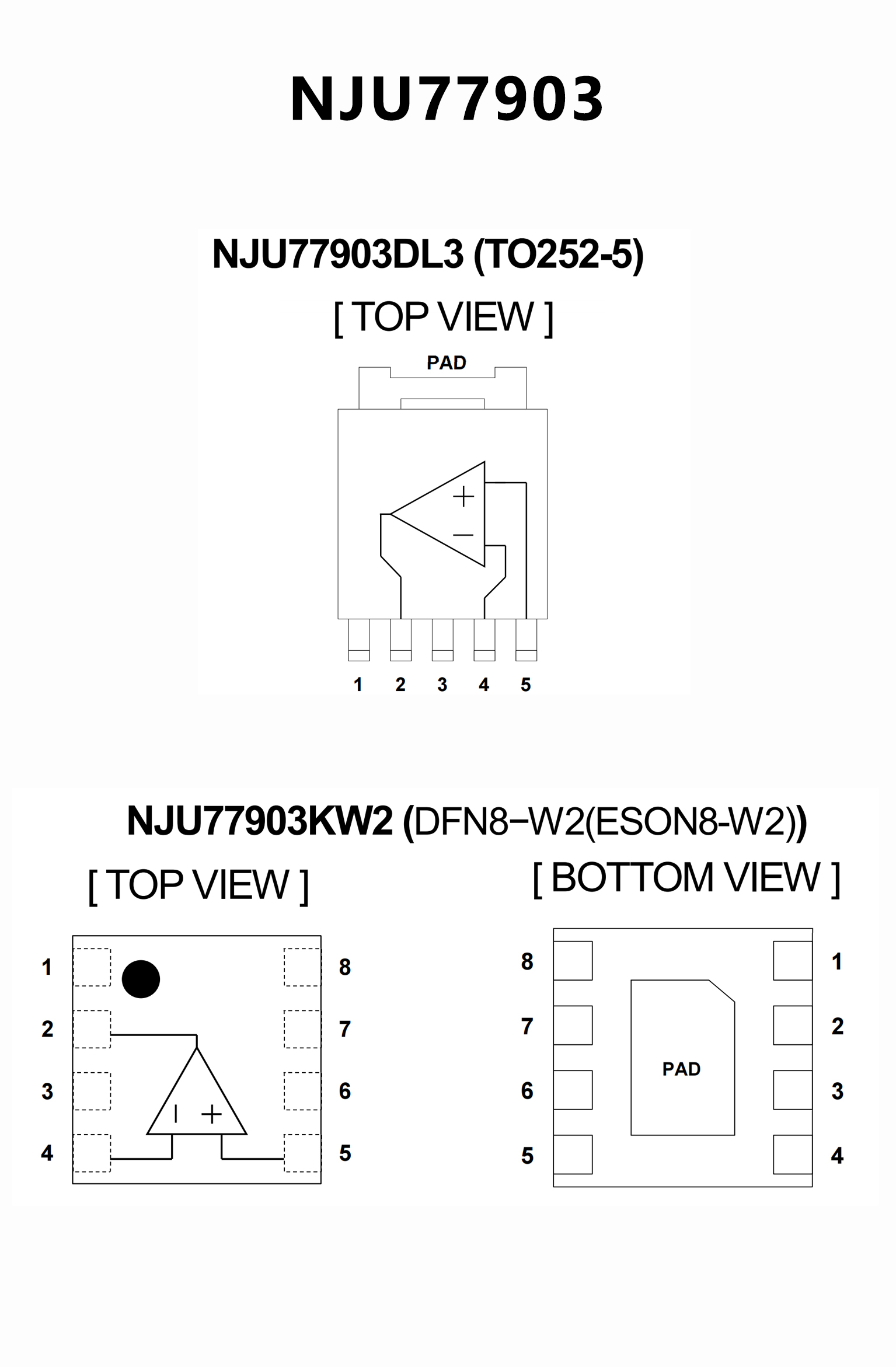

? Package Outline TO252-5
DFN8?W2 (ESON8-W2/Size: 3mm x 3mm)
