12-Bit Analog Monitor and Control Solution with Multichannel ADC, Bipolar DACs, Temperature Sensor, and GPIO Ports, Replace AMC7836.
SGM90516
SGM90516.pdf
SGM90516.pdfFEATURES
? 16 Monotonic 12-Bit DACs
Programmable Voltage Ranges: -10V to 0V,
-5V to 0V, 0V to 5V, and 0V to 10V
High Current Drive Capability: up to ±15mA
Auto-Range Detector
Selectable Clamp Voltage
? 12-Bit SAR ADC
21 External Analog Inputs
16 Bipolar Inputs: -12.5V to +12.5V
5 High-Precision Inputs: 0V to 5V
Programmable Out-of-Range Alarms
? Internal 2.5V Reference
? Internal Temperature Sensor
-40℃ to +125℃ Operation
±3℃ Accuracy
? Eight General-Purpose I/O Ports (GPIOs)
Low-Power SPI-Compatible Serial Interface
? 4-Wire Mode, 1.8V to 5.25V Operation
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green TQFP-10×10-64L (Exposed
Pad) Package

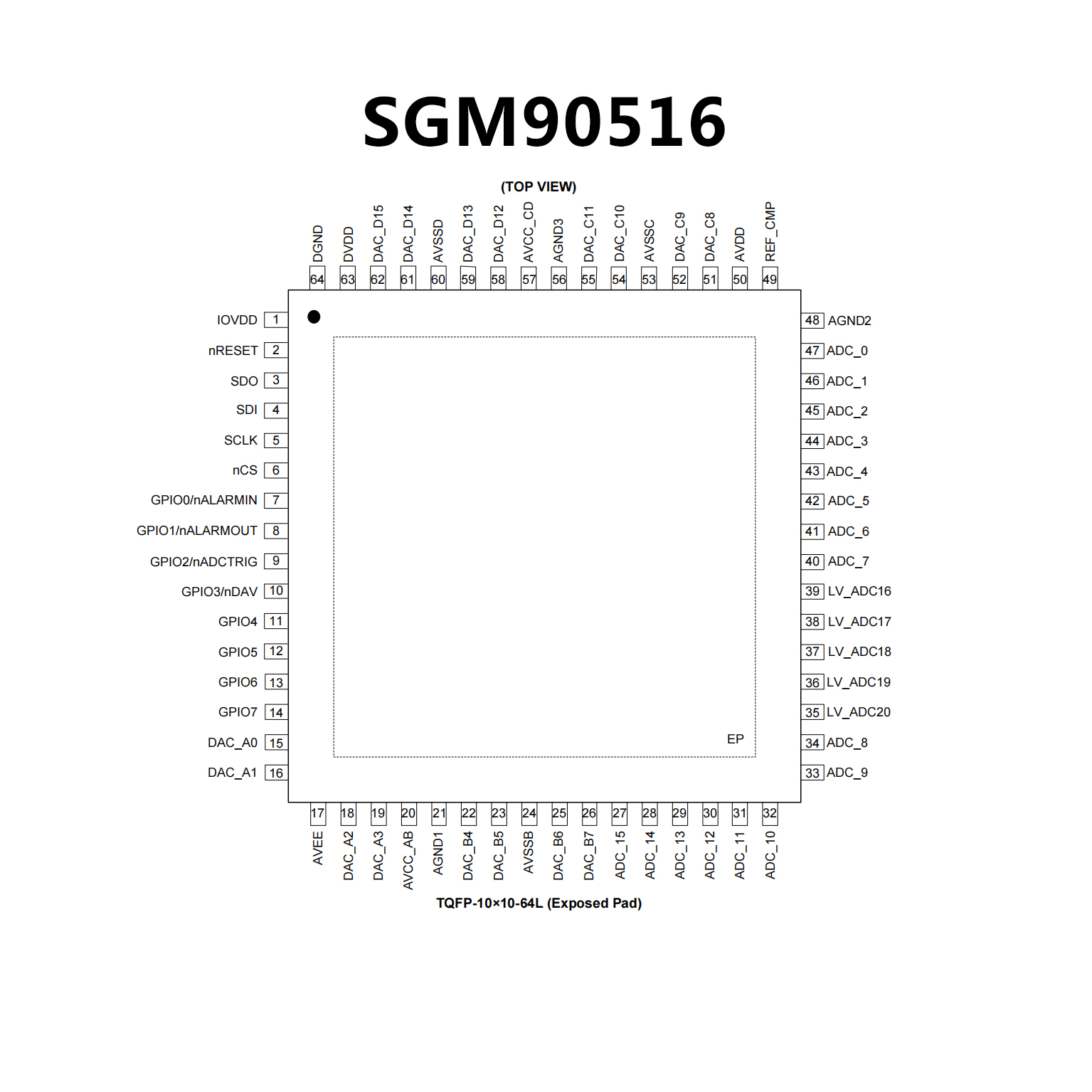

PIN CONFIGUTION
優勢替代
FEATURES
? 16 Monotonic 12-Bit DACs
Selectable Ranges: –10V to 0V, –5V to 0V,
0V to 5V, and 0V to 10V
High Current Drive Capability: up to ±15 mA
Auto-Range Detector
Selectable Clamp Voltage
? 12-Bit SAR ADC
21 External Analog Inputs
16 Bipolar Inputs: –12.5 V to +12.5 V
5 High-Precision Inputs: 0 V to 5 V
Programmable Out-of-Range Alarms
? Internal 2.5-V Reference
? Internal Temperature Sensor
–40°C to +125°C Operation
±2.5°C Accuracy
? Eight General-Purpose I/O Ports (GPIOs)
? Low-Power SPI-Compatible Serial Interface
4-Wire Mode, 1.8-V to 5.5-V Operation
? Operating Temperature: –40°C to +125°C
? Available in 64-Pin HTQFP PowerPAD? IC
Package

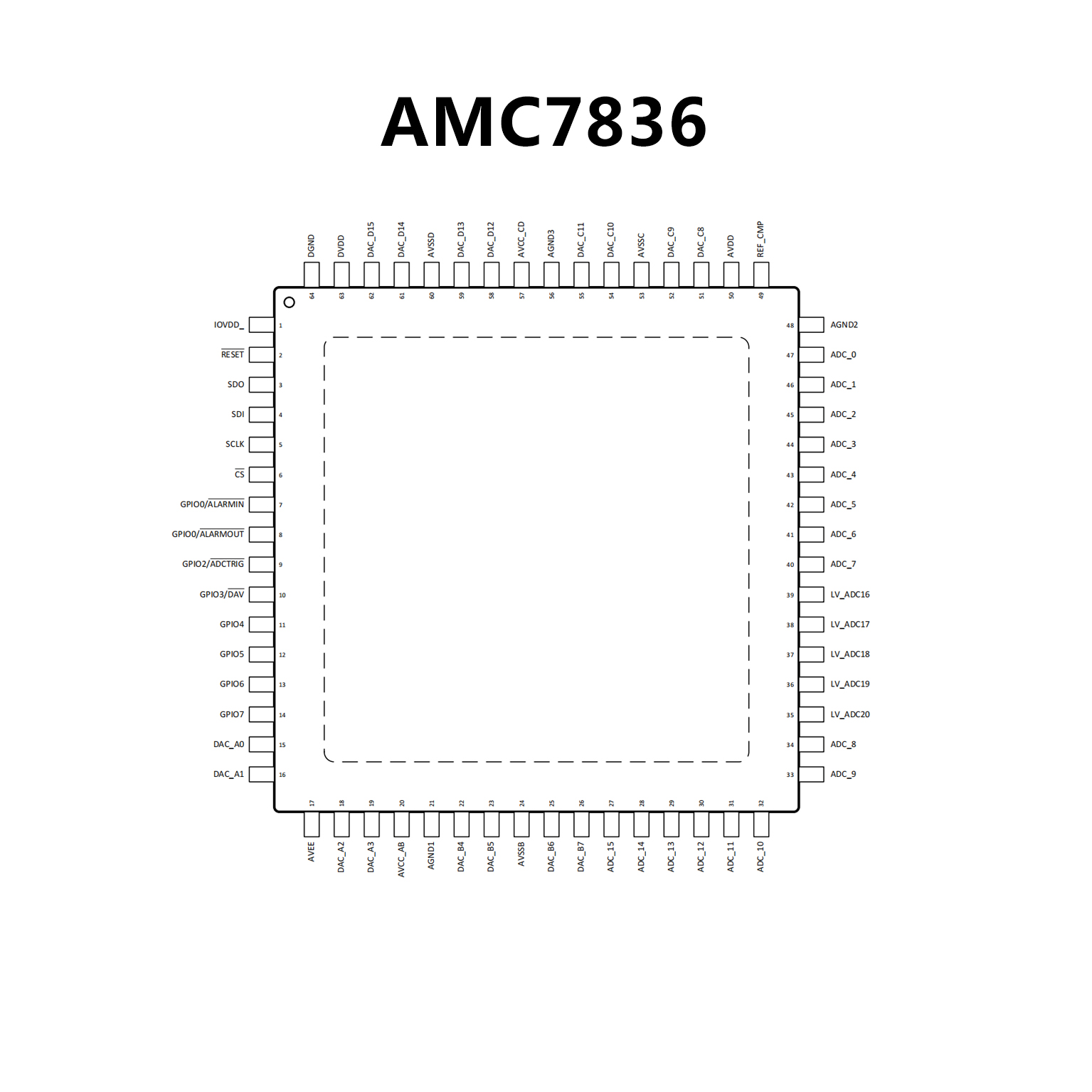

PIN CONFIGUTION
