AIC811-29GVTR.pdf
No.11077
● Ultra Low Supply Current 1μA(typ.)
● Guaranteed Reset Valid to Vcc=0.9V
● Available in two Output Types: Push-Pull Active Low (AIC811)
● 140ms Min. Power-On Reset Pulse Width
● Internally Fixed Threshold 2.3V, 2.6V, 2.9V, 3.1V, 4.0V, 4.4V, and 4.6V
● Tight Voltage Threshold Tolerance: 1.5%

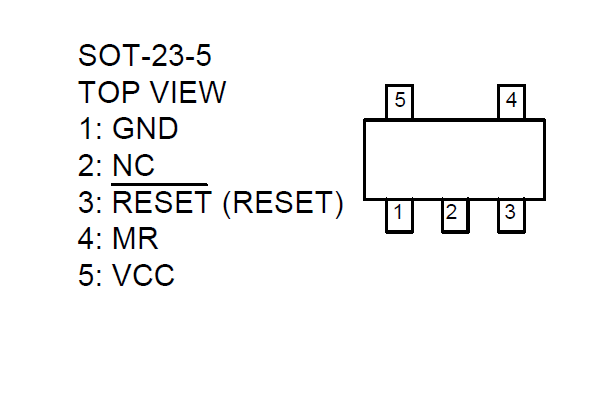

● Low profile Package: SOT-23-5

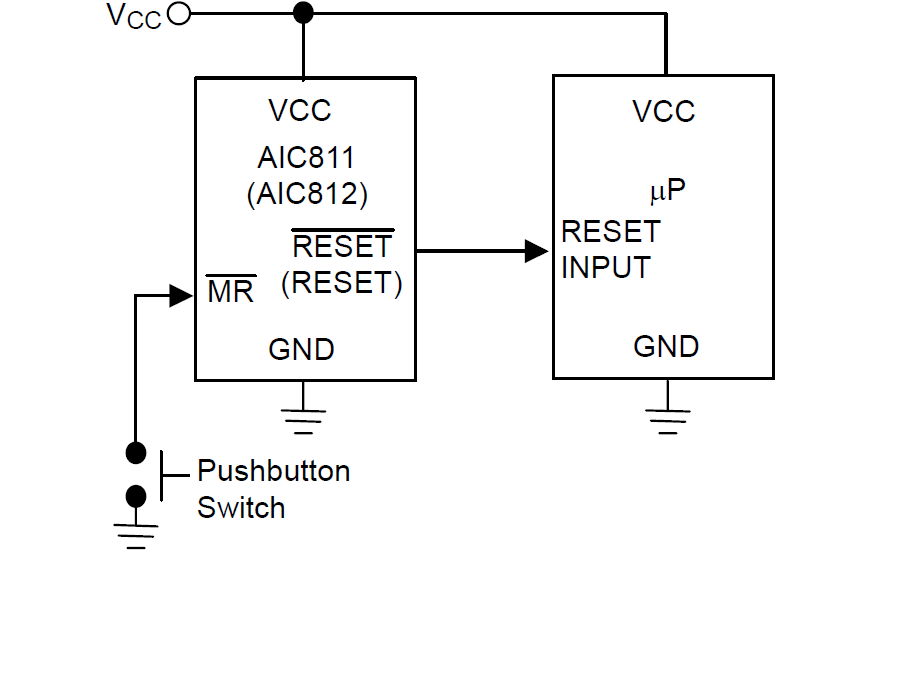

AIC811/AIC812 are low-power microprocessor (μP) supervisory circuits used to monitor power supplies in μP and digital systems. They provide applications with benefits of circuit reliability and low cost by eliminating external components. AIC811/AIC812 also offer a manual reset input.
These devices perform as valid singles in applications with Vcc ranging from 6.0V down to 0.9V. The reset signal lasts for a minimum period of 140ms whenever VCC supply voltage falls below preset threshold. Both AIC811 and AIC812 were designed with a reset comparator to help identify invalid signals, which last less than 140ms. The only difference between them is that they have an active-low RESET output and active-high RESET output, respectively.
