SGM2526.pdf
No.10946
● Wide Input Voltage Range from 4.5V to 22V with Surge up to 30V
● Extremely Low RDS(ON) for the Integrated Protection Switch: 23mΩ
● Programmable Soft-Start Time
● Programmable Current Limit: 5A (MAX)
● Thermal Shutdown Protection & Auto-Recovery
● Selectable Input Range and Clamping Output Voltage Threshold
● Enable Interface Pin
● -40℃ to +85℃ Operating Temperature Range

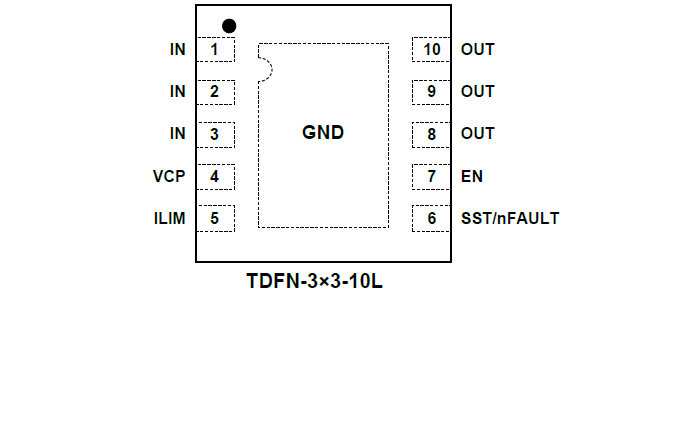

● Available in Green TDFN-3×3-10L Package

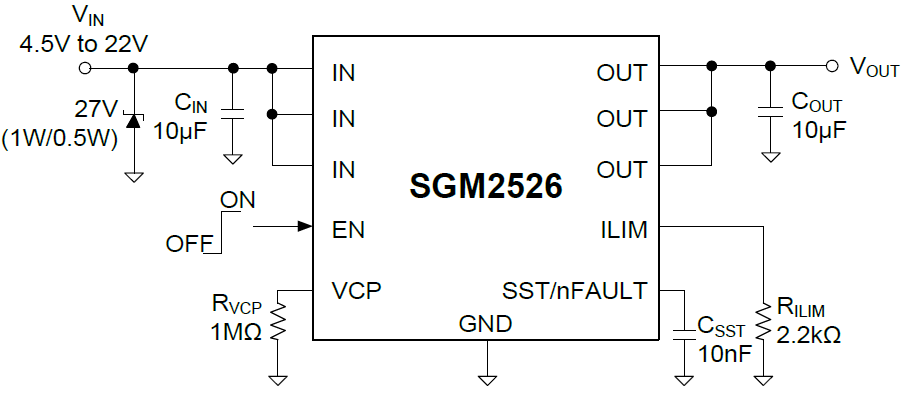

SGM2526 is a programmable current limit switch with input voltage range selection and output voltage clamping. Extremely low RDS(ON) of the integrated protection N-channel MOSFET helps to reduce power loss during the normal operation. Programmable soft-start time controls the slew rate of the output voltage during the start-up time. Independent enable control allows the complicated system sequencing control. It integrates the over-temperature protection shutdown and auto-recovery with hysteresis.
The SGM2526 is available in a Green TDFN-3×3-10L package and operates over a temperature range of -40℃ to +85℃.
