SGM48754.pdf
No.11131
● Guaranteed On-Resistance 24Ω (TYP) with +5V Supply
● Guaranteed On-Resistance Match Between Channels
● “T” Type Switch
● Low Off-Leakage Current 1nA at +25℃
● Low On-Leakage Current 1nA at +25℃
● Optimized Rise Time and Fall Time of A, B, C and D
Control Pins to Reduce Clock Feedthrough Effect
● +2.5V to +5.5V Single-Supply Operation
● 1.8V Logic Compatible
● Low Distortion: 0.4% (RL = 600Ω, f = 20Hz to 20kHz)
● High Off-Isolation: -80dB (RL = 50Ω, f = 1MHz)
● -40℃ to +85℃ Operating Temperature Range

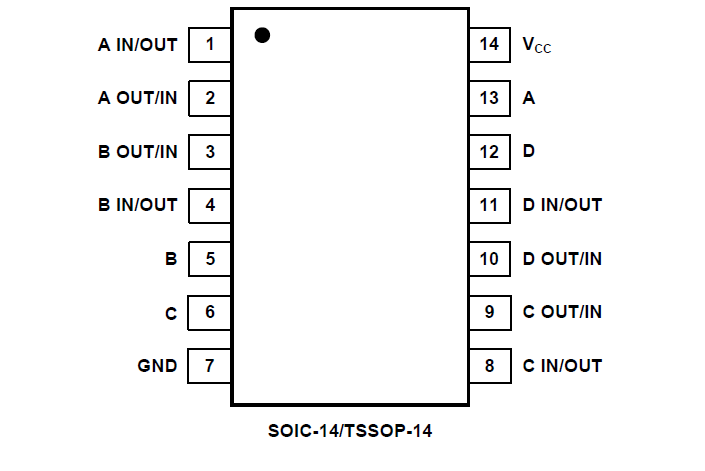

● Available in Green SOIC-14 and TSSOP-14 Packages

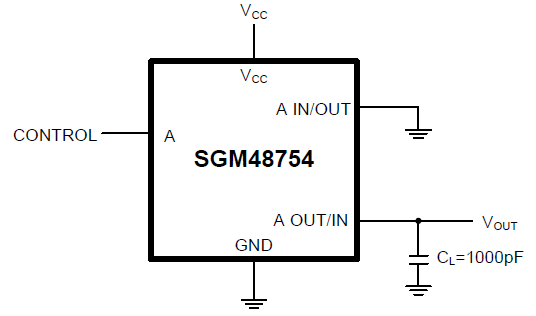

The SGM48754 is a CMOS analog switch configured as quad SPST. This CMOS device can operate from +2.5V to +5.5V single supplies. Each switch can handle rail-to-rail analog signals. The off-leakage current is only 1nA at +25℃. All digital inputs can support 1.8V logic control I/O.
The SGM48754 is available in Green SOIC-14 and TSSOP-14 packages. It operates over an ambient temperature range of -40℃ to +85℃.
